| X-Axis | 285.4" | 7,249.2 mm |
| Y-Axis | 198.8" | 5,049.5 mm |
| Z-Axis | 31.5" | 800.1 mm |
| Power | 50 hp | 37.3 kW |
| RPM | 4,000 RPM | 4,000 RPM |
| # ATC | 60 | 60 |
| Taper | CAT 50 | CAT 50 |
| Table-W | 118.1" | 2,999.7 mm |
| Table-L | 275.6" | 7,000.2 mm |
Serial Number: 453084 (26-15)
SPECIFICATIONS:
X-Axis Table Longitudinal Travel: 285.4"
Y-Axis Spindle Head Transverse: 198.8"
Z-Axis Ram Vertical Travel: 31.5"
W-Axis Cross Rail Vertical Travel: 57.08"
Distance Table to Spindle, Maximum: 90.55"
Distance Between Columns: 137.7"

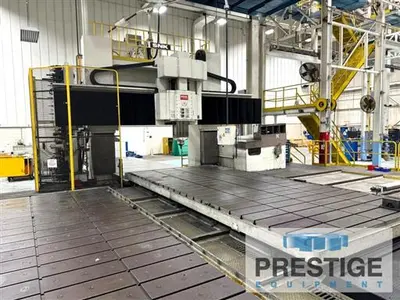

WORK TABLES:
Pallet Working Surface, T-Slotted: 275.6"x 118.1"
Maximum Pallet Workpiece Weight: 77,160 lbs.

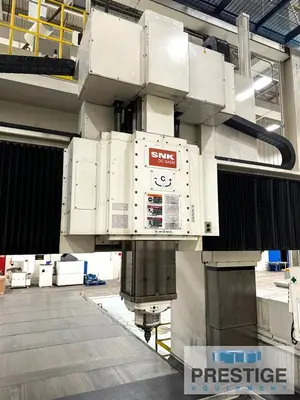

SPINDLE:
Spindle Speed Range: 10-4000 RPM
Spindle Taper: CAT 50
Spindle Bearing Inner Diameter: 4.72"
Spindle Drive Motor: 50 HP/40 HP
FEEDS & SPEEDS:
Rapid Feeds, X,Y-Axes: 787.4 IPM
Rapid Feed, Z-Axis: 787.4 IPM
Rapid Feed, W-Axis: 118.1 IPM
Cutting Feed, X & Y Axes: 1-590.5 IPM
Cutting Feed, Z-Axis: 1-472.4 IPM
Fine Feed, All Axes.................... 0.001, 0.01, 0.1 mm/pulse: 0.001, 0.01, 0.1 mm/pulse
Equipped With:

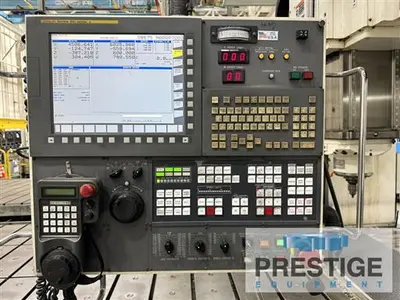

Fanuc 30i-Model A CNC Control

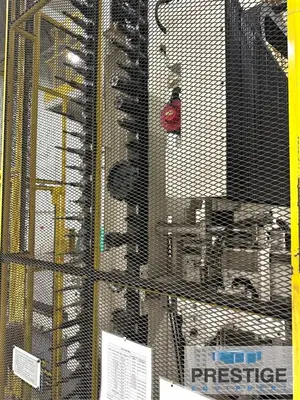

60-Position Automatic Tool Changer
275.6" x 118" T-Slotted Tables (2)
Linear & Circulation
Automatic Pallet Shuttle System

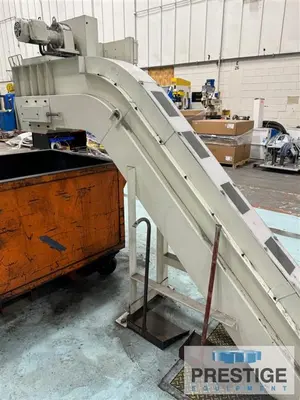

Dual Chip Conveyors
Flood & Mist Coolant
50 HP/40 HP Spindle Drive Motor
NOTES:
Inspect Under Power in Mid-West USA
Features:
Fanuc 30i-A CNC Control
60-Position Automatic Tool Changer

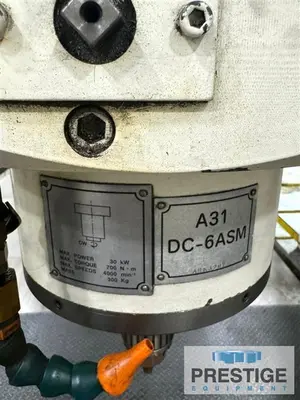

Auto Indexing Right Angle Head for 5-Face Machining
(2) 275.6" x 118" T-Slotted Tables
Pallet Shuttle
Dual Chip Conveyors
