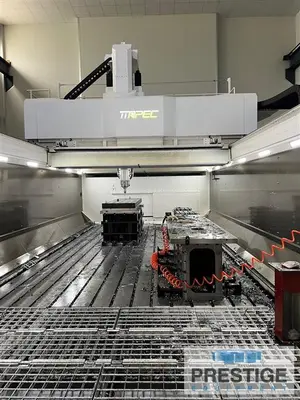

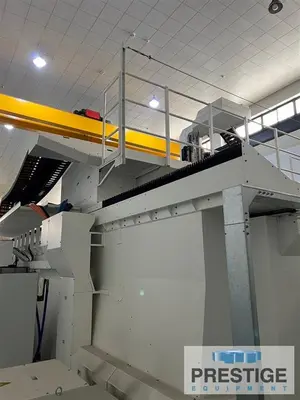

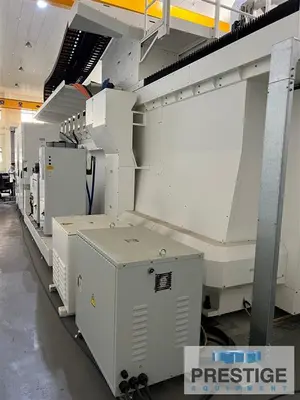

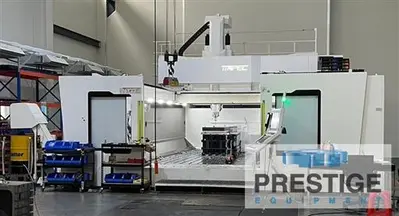

USED 2022 APEC G3060-5L
Specifications
| X-Axis | 236.66" | 6,011.2 mm |
|---|---|---|
| Y-Axis | 118.11" | 3,000 mm |
| Z-Axis | 39.37" | 1,000 mm |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 40 | 40 |
| Taper | HSK-100A | HSK-100A |
| Table-W | 118.11" | 3,000 mm |
| Table-L | 236.66" | 6,011.2 mm |
CAPACITIES:
X-Axis Travel: 236.66"
Y-Axis Travel: 118.11"
Z-Axis Travel: 39.37"
A-Axis Head Swivel: +/-125 Degree
C-Axis Head Rotation: 360 Degree

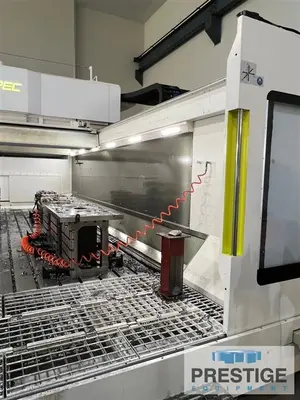

Table Dimensions: 236.66" x 118.11"
Spindle Nose to Table Surface: 11.02"-50.39"
Spindle Taper: HSK-100A
Spindle Speeds: 15,000 RPM
Equipped With:

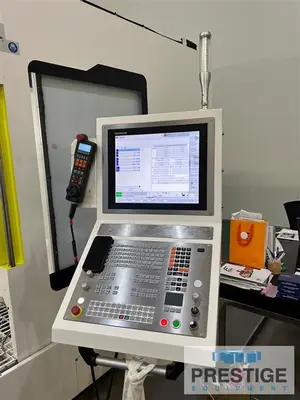

Heidenhain TNC640 CNC Control

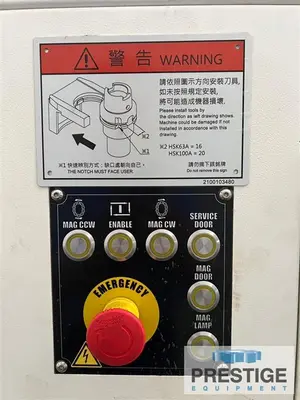

40-Position Automatic Tool Changer
BLUM Tool Length Measuring System
BLUM Work Piece Measuring System
Through Spindle Coolant System
X/Y/Z Linear Guide Ways

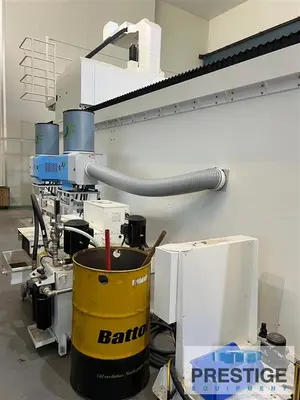

Spindle Coolant System

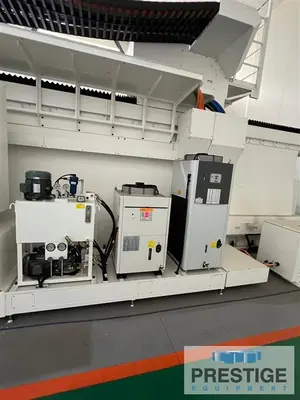

Air Conditioner for Electrical Cabinet
Heidenhain Linear Scales
Chip Conveyor
5-Axis Auto Compensation System
Features:
Heidenhain TNC640 CNC Control
40-Position Automatic Tool Changer
BLUM Tool Length Measuring System
BLUM Work Piece Measuring System
Through Spindle Coolant System
5-Axis Auto Compensation System
