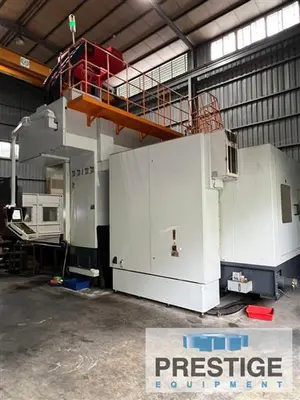

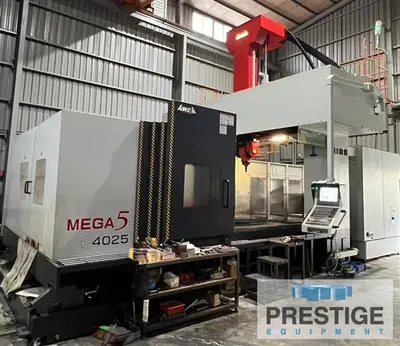

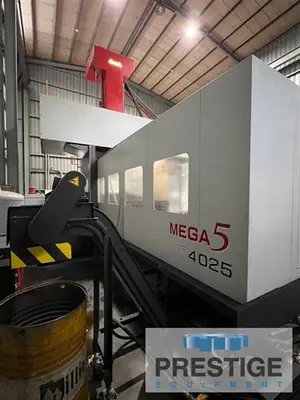

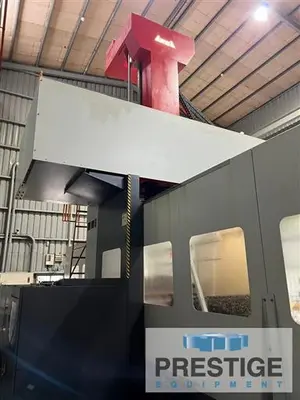

USED 2019 AWEA MEGA5 4025 5-AXIS
Overview
Specifications
| X-Axis | 157.48" | 4,000 mm |
|---|---|---|
| Y-Axis | 125.98" | 3,199.9 mm |
| Z-Axis | 47.24" | 1,199.9 mm |
| Power | 86.6 hp | 64.6 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 40 | 40 |
| Taper | HSK-A100 | HSK-A100 |
| Table-W | 94.48" | 2,399.8 mm |
| Table-L | 158.26" | 4,019.8 mm |
SPECIFICATIONS:
X-Axis Travel: 157.48"
Y-Axis Travel: 125.98"
Z-Axis Travel: 47.24"
B-Axis Travel: +/-100 Deg.
C-Axis Travel: +/-250 Deg.
Distance from Spindle Nose to Table: 7.87"-55.11"
Table Size: 158.26" x 94.48"
Table Capacity: 33,000 Lbs.
Spindle Speeds: 15,000 RPM
Spindle Drive Motor: 86.6 HP / 66.6 HP
Spindle Taper: HSK-A100
Equipped With:

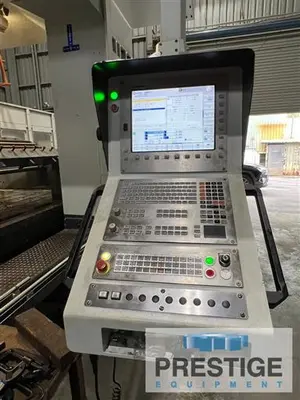

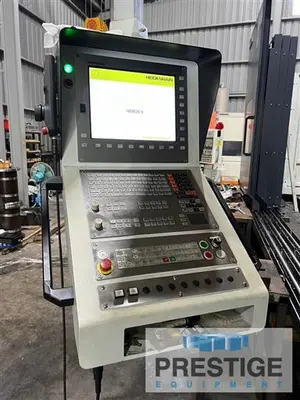

Heidenhain TNC 640 CNC Control
40-Position Automatic Tool Changer
5-Axis Machining

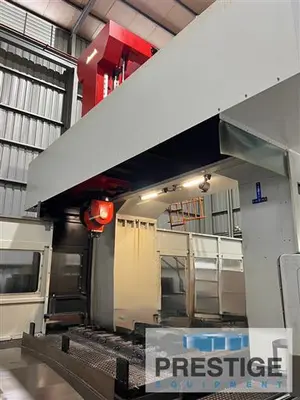

Italy Technai TCH-19F Two-Axis Head
A/C Max Speed 50RPM
X/Y/Z Heidenhain Linear Scales
Through Spindle Coolant
Chip Conveyor
Spindle Oil Cooler
Oil Skimmer
Part Setter
Tool Off Set
Features:
Heidenhain TNC 640 CNC Control
40-Position Automatic Tool Changer
5-Axis Machining
Italy Technai TCH-19F Two-Axis Head
A/C Max Speed 50RPM
X/Y/Z Heidenhain Linear Scales
Through Spindle Coolant
