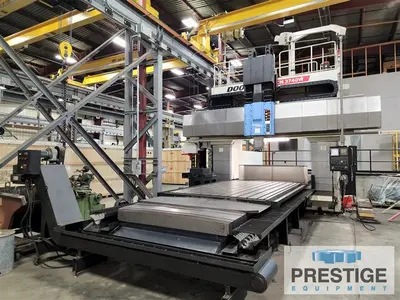

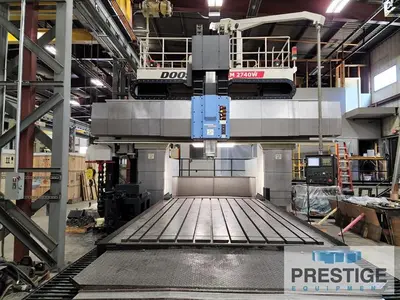

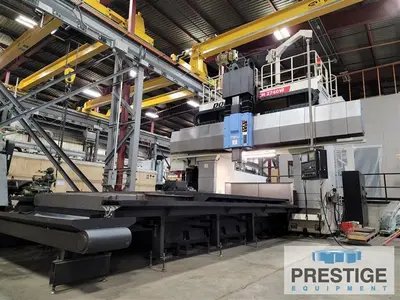

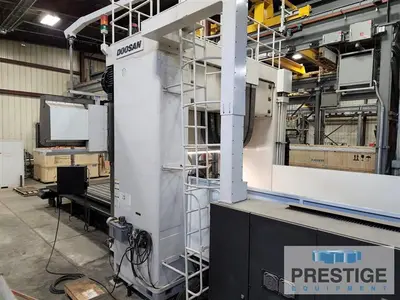

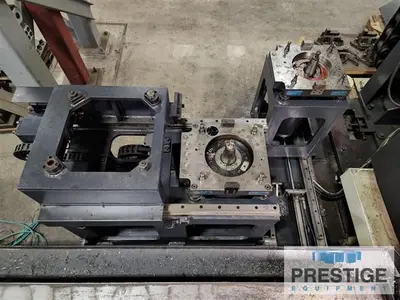

USED 2009 DOOSAN DCM 2740
Specifications
| X-Axis | 167.32" | 4,249.9 mm |
|---|---|---|
| Y-Axis | 125.98" | 3,199.9 mm |
| Z-Axis | 27.56" | 700.02 mm |
| Power | 33.5 hp | 25 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 40 | 40 |
| Taper | BT-50 | BT-50 |
| Table-W | 106.3" | 2,700 mm |
| Table-L | 161.42" | 4,100.1 mm |
TRAVELS:
X-Axis Table Travel: 167.32"
Y-Axis Head Cross Travel: 125.98"
Z-Axis Ram Vertical Travel: 27.56"
W-Axis Cross Rail Vertical Travel: 43.31"
SPECIFICATIONS:
Width Between Columns: 106.3"

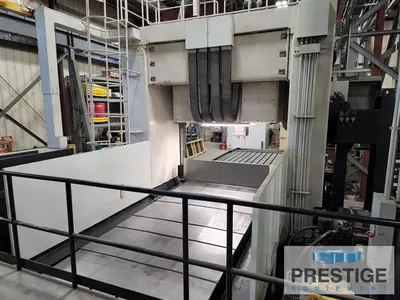

Working Surface: 86.61" x 161.42"
Table Load Capacity: 39,683 Lbs.
Working Height: 64.96"
Spindle Speeds (2-Range): 0-6,000 RPM
Spindle Taper: BT-50
Spindle Drive Motor: 33.5/29.5 HP

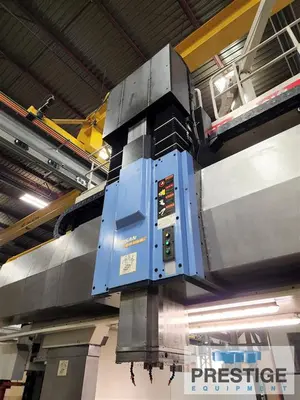

Ram Dimensions: 14.96" x 14.96"
Approximate Floor Space: 440.9" x 304.3"
Approximate Height: 266.75"
Approximate Weight: 143,300 Lbs
Equipped With:
Elevating Rail

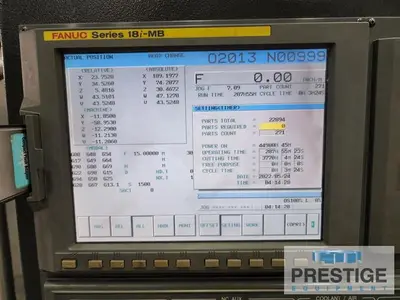

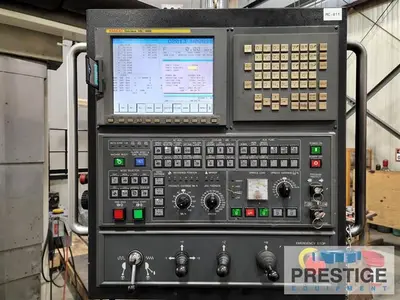

Fanuc 18i-MB CNC Controls
90 Degree Manual Rotating Head
Automatic Head Changer
40-Station Automatic Tool Changer
Heidenhain Scales on X,Y & Z Axis
Note:
Inspect Under Power in East Coast Plant
Features:
Elevating Rail
Fanuc 18i-MB CNC Controls
90 Degree Manual Rotating Head
Automatic Head Changer
40-Station Automatic Tool Changer
Heidenhain Scales on X,Y & Z Axis
