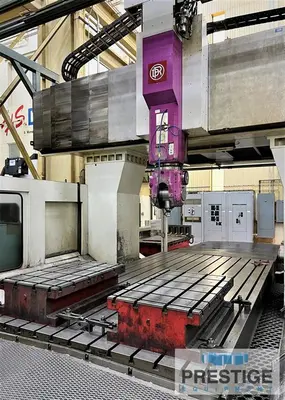

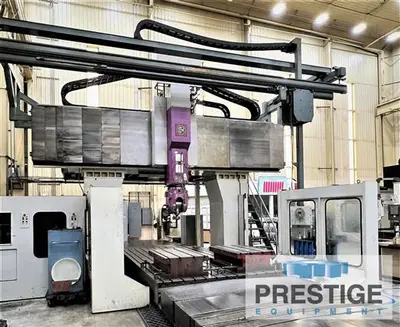

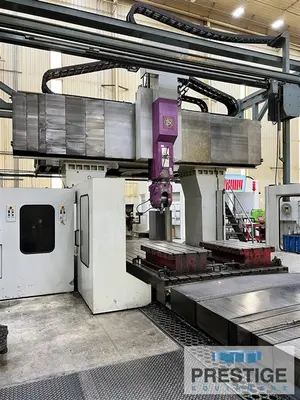

USED 2022 DROOP & REIN TF2500-SRC-30/15NW
Overview
Specifications
| X-Axis | 216" | 5,486.4 mm |
|---|---|---|
| Y-Axis | 130" | 3,302 mm |
| Z-Axis | 60" | 1,524 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 30 | 30 |
| Taper | CAT 50 | CAT 50 |
| Table-W | 98.4" | 2,499.4 mm |
| Table-L | 196.8" | 4,998.7 mm |
SPECIFICATIONS:
Table Dimensions: 98.4" x 196.8"
Distance Between Columns: 118"
X-Axis Travel: 216"
Y-Axis Travel: 130"
Z-Axis Travel: 60"
Height Under Rail: 85.8"
Table Weight Capacity: 55,000 Lbs
Spindle Taper: CAT 50
Main Motor: 40 HP
Equipped With:

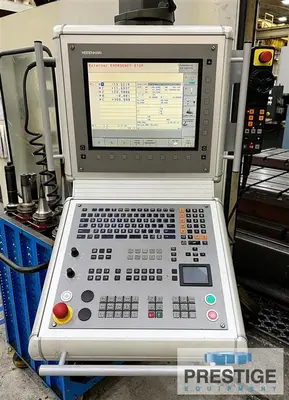

Heidenhain iTNC 530 CNC Control (Upgraded 2022)

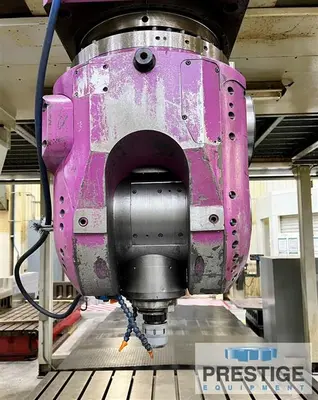

4,000 RPM Universal Head Attachment
6,000 RPM Straight Head Attachment
30-Station Automatic Tool Changer
Operator Control Console
Note:

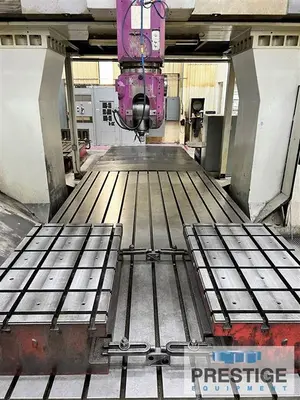

(2) Set-Up Tables are not Included. Originally Mfg In 1995 and Upgraded in 2022 with new CNC Controls. Recently in Operation in High Precision Mold Making Facility.
Features:
Heidenhain iTNC 530 CNC Control (Upgraded 2022)
4,000 RPM Universal Head Attachment
6,000 RPM Straight Head Attachment
30-Station Automatic Tool Changer
