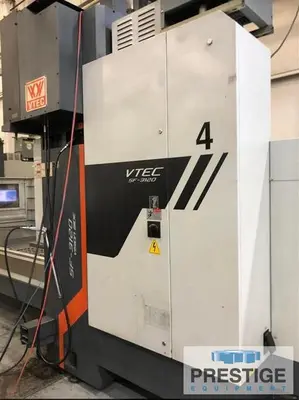

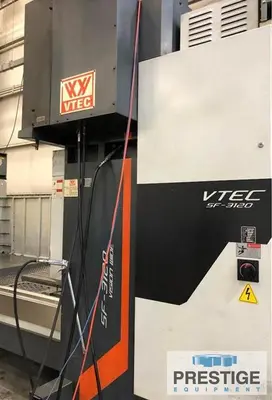

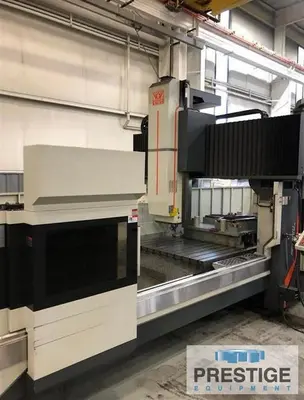

USED 2014 VISION WIDE VTEC SF3120
Overview
Specifications
| X-Axis | 125" | 3,175 mm |
|---|---|---|
| Y-Axis | 80" | 2,032 mm |
| Z-Axis | 39" | 990.6 mm |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 40 | 40 |
| Taper | Cat #50 | Cat #50 |
| Table-W | 118.11" | 3,000 mm |
| Table-L | 71" | 1,803.4 mm |
CAPACITY:
Table size............................. 118.11" x 71": 118.11" x 71"
Table Travel, X-Axis: 125"
Head Travel, Y-Axis: 80"
Ram Stroke, Z-Axis: 39"
Maximum Distance Bridge to Table: 47"
Maximum Distance Spindle to Table...... 45": 45"
Maximum Distance Between Columns: 83"
Spindle Speeds: To 6000 RPM
Spindle Speed Range, Geared Head: 2
Spindle Taper.......................... Cat #50: Cat #50
Equipped With:
Fanuc 31iMB CNC Control
AICC II Nano high speed machining (Look Ahead Machining)
40-Station Automatic Tool Changer
Coolant through spindle 300 PSI
2-Speed geared head
6000 RPM Geared Spindle
Bag coolant filter system geared spindle
Chip augers & Chip Conveyor
Linear guide Ways on X & Y Axis
Box ways Z Axis
Features:
Fanuc 31iMB CNC Control
Coolant through spindle 300 PSI
AICC II Nano high speed machining (Look Ahead Machining)
40-Station Automatic Tool Changer
2-Speed geared head
Bag coolant filter system
6000 RPM geared spindle
Chip augers & Chip Conveyor
Linear guides X & Y Axis
Box way Z Axis
