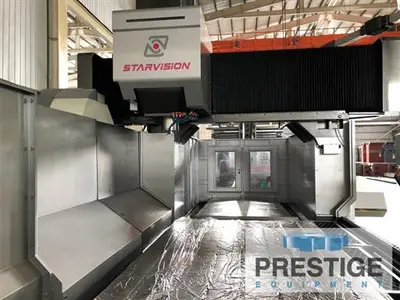

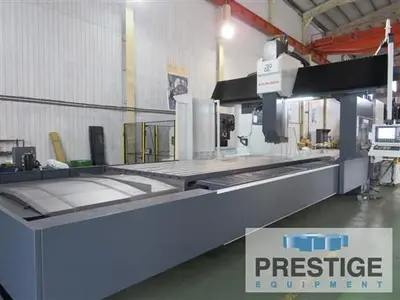

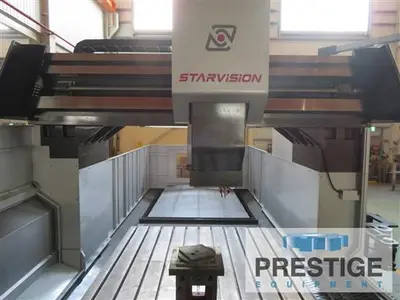

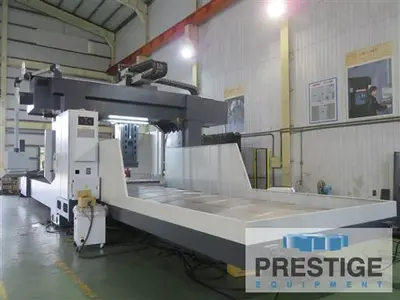

USED 2024 STARVISION DX 3220
Overview
Specifications
| X-Axis | 125.98" | 3,199.9 mm |
|---|---|---|
| Y-Axis | 78.74" | 2,000 mm |
| Z-Axis | 39.37" | 1,000 mm |
| Power | 50 hp | 37.3 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 32 | 32 |
| Taper | CAT-50 | CAT-50 |
| Table-W | 66.92" | 1,699.8 mm |
| Table-L | 118.11" | 3,000 mm |
SPECIFICATIONS:
Table Travel, X-Axis: 125.98"
Head Travel, Y-Axis: 78.74"
Ram Stroke, Z-Axis (Extended): 39.37"
Table Size: 118.11" x 66.92"
Table Capacity: 22,046 Lbs.
Distance Between Columns: 82.67"
Spindle Nose to Table: 5.9"-45.3"
Spindle Speed, Gear Driven: 6,000 RPM
Spindle Taper: CAT-50
Main Motor (2-Speed Gear Box: 50 HP/40 HP
Cutting Feed Rate: 275 IPM
Rapid Feed Rate (X-Axis): 945 IPM
Rapid Feed Rate (Y-Axis): 787 IPM
Rapid Feed Rate (Z-Axis): 590 IPM
Approximate Machine Dimensions: 343" x 177" x 197"
Approximate Machine Weight: 50,000 Lbs.
Equipped With:
Fanuc OiMF CNC Control
Fanuc Manual Guide i
Fanuc JERK Control
Fanuc Helical Interpolation
Fanuc High Speed Skip Signal Option
32-Station Automatic Tool Changer
Coolant Thru Spindle (300 PSI)
4-Axis Prep
Flood Coolant System
Auto Power Off
Air Blast Through Spindle
Spindle Work Lamp
Spindle Oiler Chiller System
Automatic Lubrication
Belt Type Chip Conveyor with Cart
NOTE:
Brand New Machine, Still in Crate, 1 year Parts & Labor Warranty, 2 Years Warranty on Fanuc Control/Motors
Installation Included (After Machine is roughly leveled and customer supplies utlilties/rigging support)
Features:
Fanuc OiMF CNC Control
32-Station Automatic Tool Changer
Coolant Thru Spindle (300 PSI)
4-Axis Prepped
Air Blast Through Spindle
