| X-Axis | 165.35" | 4,199.9 mm |
| Y-Axis | 90.55" | 2,300 mm |
| Z-Axis | 36.22" | 919.99 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 40 | 40 |
| Taper | CAT 50 | CAT 50 |
| Table-W | 80.7" | 2,049.8 mm |
| Table-L | 165.35" | 4,199.9 mm |
SPECIFICATIONS:
X-Axis, Table Travel: 165.35"
Y-Axis, Spindle Head Travel: 90.55"
Z-Axis, Vertical Travel: 36.22"
Distance Between Columns: 94.48"
Spindle Nose to Table: 5.9"-42.12""
Table Size: 80.70" x 165.35"
Table Load Capacity: 28,600 lbs
Spindle Taper: CAT 50
Spindle Speeds (2-Gear Ranges): 50-8,000 RPM
Spindle Motor: 30 HP
Estimated Machine Weight: 84,581 Lbs
Equipped With:
Fanuc 18iMB CNC Control
HPCC Data Server, Nubs, Ris

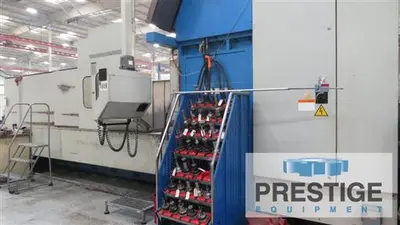

40 Station Automatic Tool Changer
Coolant Thru Spindle
Coolant Thru Ball Screws
Pre-Wired for 4th Axis
Chip Conveyor
NOTE:
Inspect In Plant Under Power, Machining Aluminum, Tooling Not Included
Features:
Fanuc 18iMB CNC Control
40 Station Automatic Tool Changer
Thru Spindle Coolant
