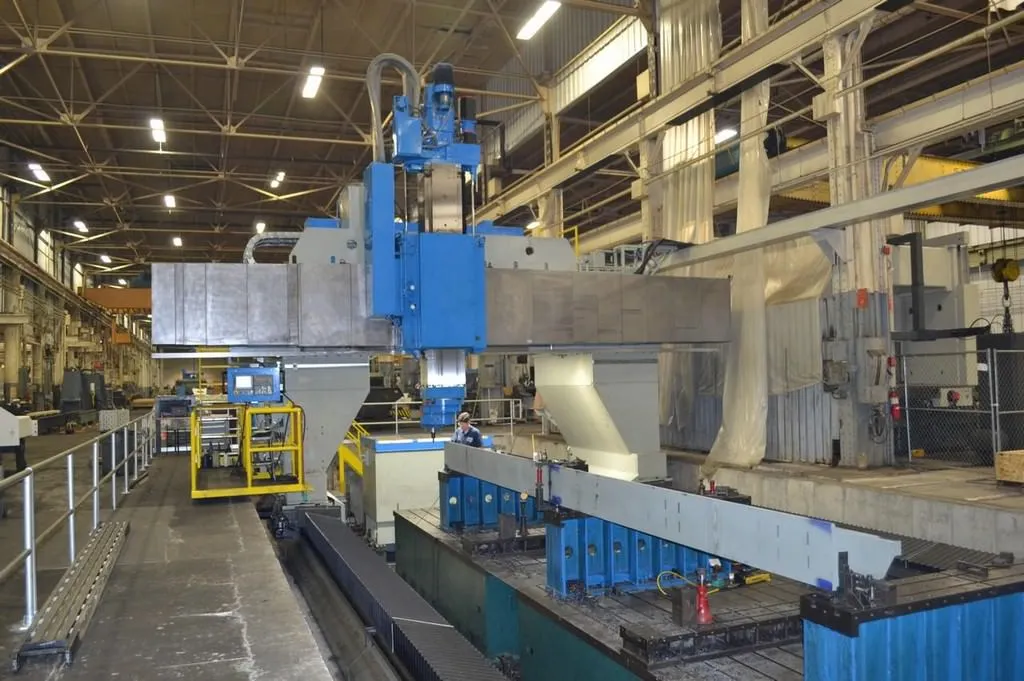

USED 2012 INGERSOLL MASTERHEAD 5-AXIS GANTRY
Overview
Specifications
| X-Axis | 492" | 12,497 mm |
|---|---|---|
| Y-Axis | 216.53" | 5,499.9 mm |
| Z-Axis | 59.05" | 1,499.9 mm |
| Power | 125 hp | 93.2 kW |
| RPM | 2,500 RPM | 2,500 RPM |
| Taper | Cat 50 | Cat 50 |
CAPACITY:
X-Axis, Gantry Travel: 492"
Y-Axis, Horizontal Head Travel: 216.53"
Z-Axis, Ram Stroke: 59.05"
B-Axis, Optional w/Nutating Head: 360,000 Positions
C-Axis, Head Rotation Cont & Rev: 360,000 Positions
Table Size, Per Customer Requirement: On Request
Distance Between Columns: 216.53"
Distance Table to Milling Head: 144"
Ram Cross Section: 23.62" x 23.62"
Spindle Motor: 125 HP
Spindle Speeds: 0-2500 RPM
Floor Space, Width x Length: 400"
Overall Height From Floor Level: 306"
Equipped With:

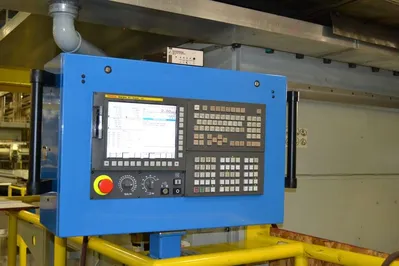

Fanuc 31i CNC Controls, New 2012
Automatic Attachment Changer (AAC)
Masterhead Drum Dual Pinion Rotary C-Axis
Internal Thru Spindle Coolant
External Coolant System

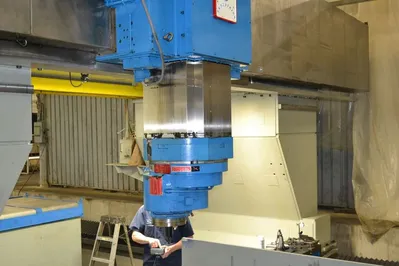

SPINDLE UNITS:
3-Straight Milling Heads, Cat 50 Taper 26", 36" & 57" Long
1-Right Angle Milling Head, Cat 50 Taper, 27" Long
1-Right Angle Milling Head, Cat 50 Taper, 27" Long
1-Right Angle Milling Head, Cat 50 Taper, 37" Long
Full Length Dual Chip Conveyors (Optional)
Way Covers
NOTE:
Optional Milling & Turning Table, Inspect Under Power
Features:
Rebuilt and Retrofit 2012
Fanuc 31i CNC Controls

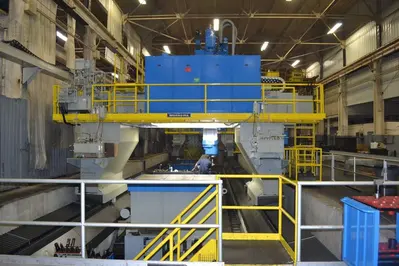

Travelling Gantry
Automatic Attachment Changer (AAC)
