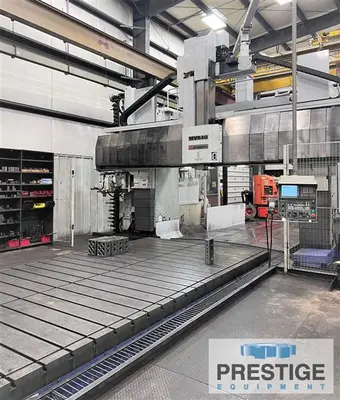

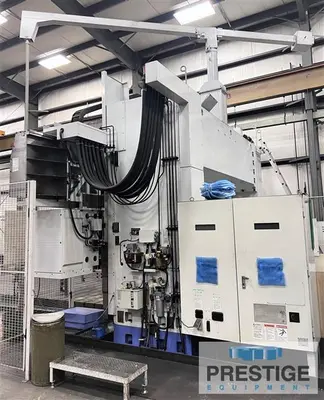

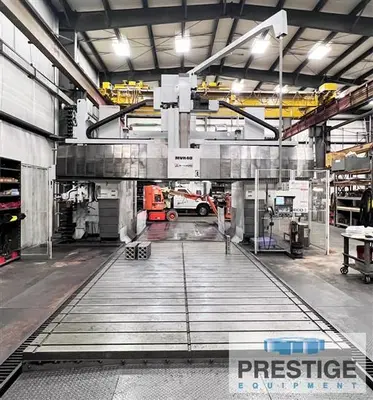

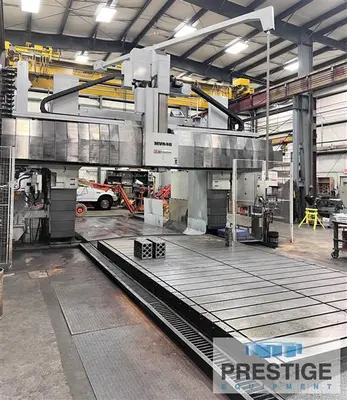

| X-Axis | 244.1" | 6,200.1 mm |
| Y-Axis | 165.35" | 4,199.9 mm |
| Z-Axis | 27.55" | 699.77 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 4,000 RPM | 4,000 RPM |
| # ATC | 80 | 80 |
| Taper | No. 50 | No. 50 |
| Table-W | 118.11" | 3,000 mm |
| Table-L | 236.22" | 6,000 mm |
CAPACITY:

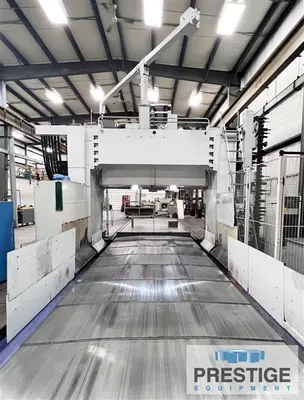

Table Size: 236.22" x 118.11"

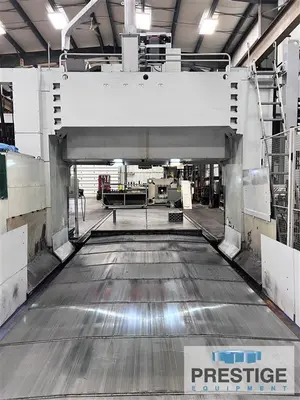

Distance Between Columns: 147.60"
Maximum Height Under Spindle Nose: 84.6"
X-Axis Travel, Table Longitudinal: 244.10"
Y-Axis Travel, Head: 165.35"
Z-Axis Travel, Spindle: 27.55"
W-Axis Travel, Crossrail: 31.49"

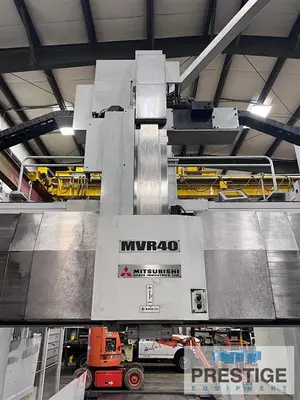

Ram Size: 13.7" x 13.7"

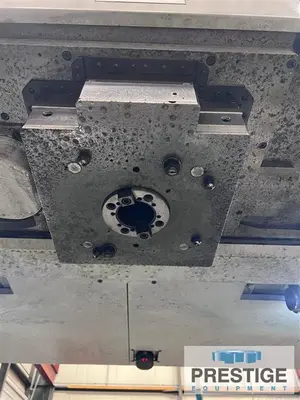

Spindle Diameter: 4.33"
Spindle Speeds: 17-4000 RPM
Spindle Taper: No. 50
Spindle Drive Motor: 40 HP
Cutting Feeds: .039-393.7 IPM
X-Axis Positioning Accuracy: +/- 0.0010/244.1"
Y-Axis Positioning Accuracy: +/- 0.0008/157.5"
Z-Axis Positioning Accuracy: +/- 0.0002/31.5"
W-Axis Positioning Accuracy: +/- 0.0003/43.3"
Rapid Traverse, X-Axis: 590.55 IPM
Rapid Traverse, Y-Axis: 866.14 IPM
Rapid Traverse, Z-Axis: 393.70 IPM
Rapid Traverse, W-Axis: 118.11 IPM
Approximate Machine Weight: 130,000 Lbs
Equipped With:

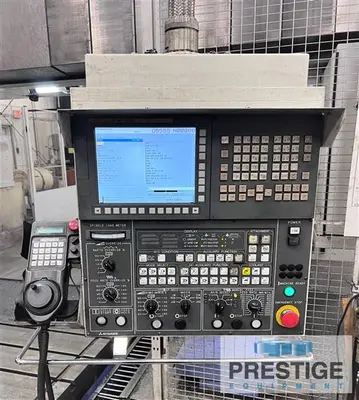

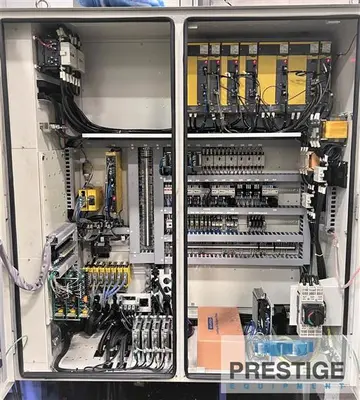

Fanuc 31i-A CNC Controls

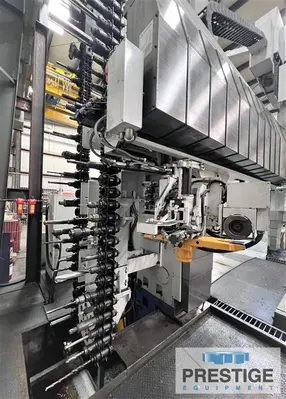

80 Position Automatic Tool Changer
Mitsubishi VHRH-30-35-35P-AC CNC Right Angle Head with 1-Degree Indexing
5-Face Machining Software
Geared Head
Attachment Storage for Right Angle Head
Factory Column Riser for 84.6" Clearance Spindle Nose to Table
Rigid Tapping
MP Scales on X,Y,Z,W Axes
Coolant/Air Thru Spindle, 141 PSI
Telescoping Way Covers
Chip Conveyor
Features:
Fanuc 31i-A CNC Controls
CNC Auto Indexing Right Angle Head
5-Face Machining Software
80 Position Automatic Tool Changer
Head Change Station
