| X-Axis | 120.08" | 3,050 mm |
| Y-Axis | 94.49" | 2,400 mm |
| Z-Axis | 42.13" | 1,070.1 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 40 | 40 |
| Taper | CAT #50 | CAT #50 |
| Table-W | 80.31" | 2,039.9 mm |
| Table-L | 125.98" | 3,199.9 mm |
SPECIFICATIONS:
X-Axis, Table Travel: 120.08"
Y-Axis, Spindle Head Travel: 94.49"
Z-Axis, Vertical Travel: 42.13"
Distance Between Columns: 98.82"
Distance Spindle Nose to Table: 15.35"-57.48"
Table Size: 125.98" x 80.31"
Table Capacity: 24,250 Lbs.
Spindle Taper: CAT #50
Maximum Spindle Speed: 6000 RPM
Spindle Motor: 30 HP
Cutting Feed Rate: 0.34-196.8 IPM
Rapid Traverse (X,Y,Z0: 393 IPM
Equipped With:

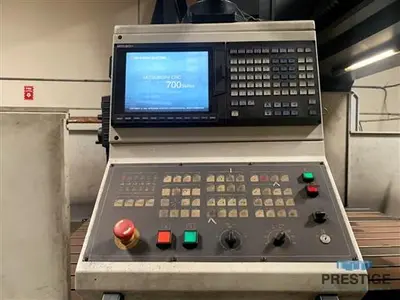

Mitsubishi M730 CNC Control
40 Station Automatic Tool Changer
Plumbed for Coolant Thru Spindle
Auto Lubrication System
Work Light
Spindle Oil Cooler
Coolant System
(4) Chip Conveyors

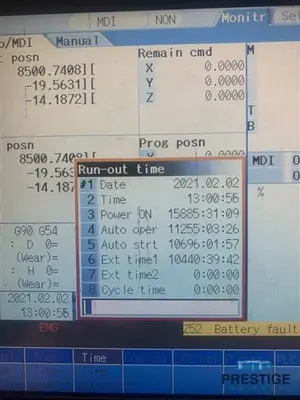

HOURS:
Power On: 15,885
Features:
Mitsubishi M730 CNC Control
40 Station Automatic Tool Changer
