| X-Axis | 160" | 4,064 mm |
| Y-Axis | 80" | 2,032 mm |
| Z-Axis | 32" | 812.8 mm |
| Power | 35 hp | 26.1 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 20 | 20 |
| Taper | CAT #50 | CAT #50 |
| Table-W | 100" | 2,540 mm |
| Table-L | 165" | 4,191 mm |
SPECIFICATIONS:
X-Axis, Table Travel: 160"
Y-Axis, Spindle Head Travel: 80"
Z-Axis, Vertical Travel: 32"
Distance Between Columns: 108.3"
Distance Between Spindles: 40"
Distance Spindle Nose to Table: 5.3"-37.6 "
Distance Between Spindle to Column: 22.95"
Table Size: 165" x 100"
Table Capacity: 45,000 Lbs
Spindle Taper: CAT #50
Maximum Spindle Speed (Geared)......... 6,000 RPM: 6,000 RPM
Spindle Motor: 35 HP
Rapid Feed Rates (X,Y,Z): 393 IPM
Cutting Feed Rate: 276 IPM
Equipped With:

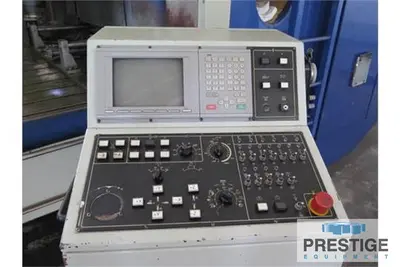

Mitsubishi M530 CNC Control
(2) 20 Station Automatic Tool Changers
Automatic Lubrication System
Spindle Oil Cooler
Coolant System
Automatic Power Off
Chip Conveyor
HOURS: 15,900
Features:
Mitsubishi M530 CNC Control
(2) 20 Station Automatic Tool Changers
Automatic Lubrication System
Chip Conveyor
