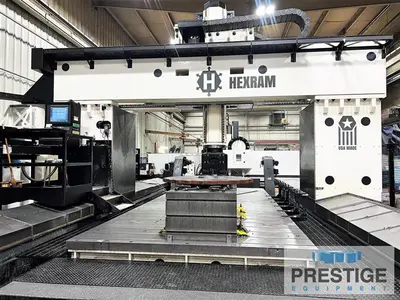

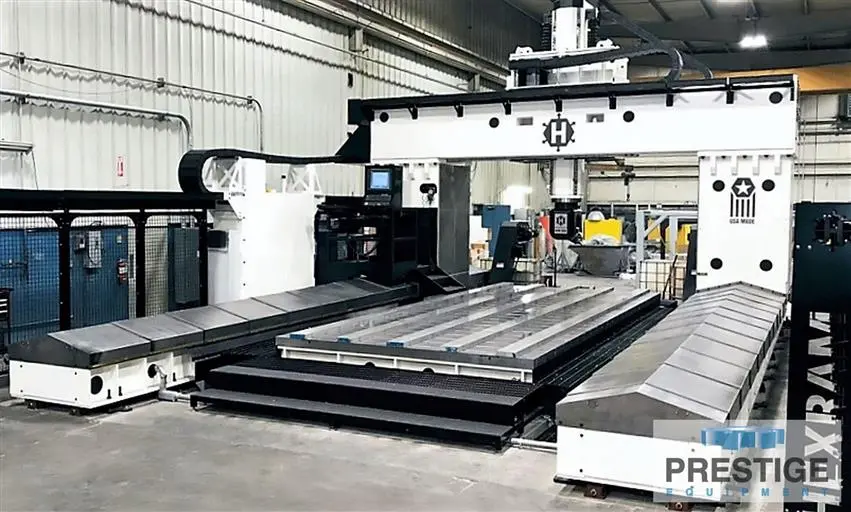

USED 2018 HEXRAM MP 1024
Specifications
| X-Axis | 289.5" | 7,353.3 mm |
|---|---|---|
| Y-Axis | 131.5" | 3,340.1 mm |
| Z-Axis | 47.5" | 1,206.5 mm |
| Power | 85 hp | 63.4 kW |
| RPM | 13,000 RPM | 13,000 RPM |
| # ATC | 15 | 15 |
| Taper | HSK-100A | HSK-100A |
| Table-W | 120" | 3,048 mm |
| Table-L | 288" | 7,315.2 mm |
SPECIFICATION:

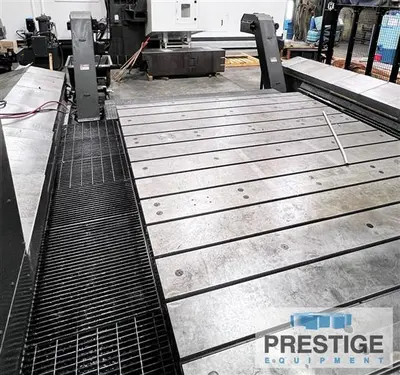

Table Dimensions, T-Slotted............ 288" x 120": 288" x 120"
Distance Between Columns: 174.5"
X-Axis Travel: 289.5"
Y-Axis Travel: 131.5"
Z-Axis Travel: 47.5"
Table to Spindle in Vert. Position: 59"
A-Axis Head Travel: +/- 110 Deg.
C-Axis Head Rotation, Cont.: 360,000 Position
Spindle Taper: HSK-100A
Spindle Speed: 13,000 RPM
Spindle Motor, 30 Min. / Cont.: 62 HP/85 HP
Floor Space: 283" x 303"
Machine Height, Max: 238"
Equipped With:

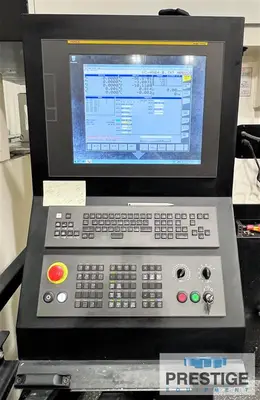

Fanuc iH Pro CNC Control

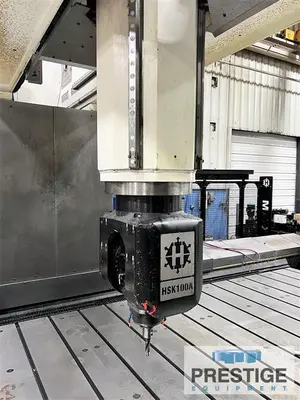

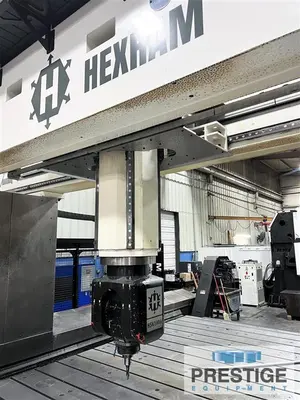

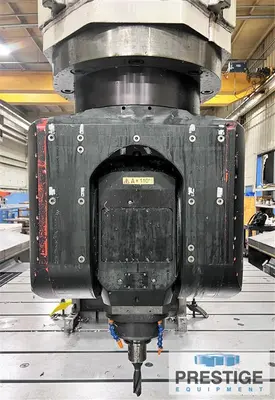

A/C Axis Continuous Milling Head
15-Station Pick Up Tool Changer
Coolant Through Spindle
Dual Chip Conveyors
NOTE:
ATC can be expanded to 25-Tools. Inspect in Plant Under Power
Features:
Fanuc iH Pro CNC Control
A/C Axis Continuous Milling Head
16-Station Pick Up Tool Changer
Coolant Through Spindle
