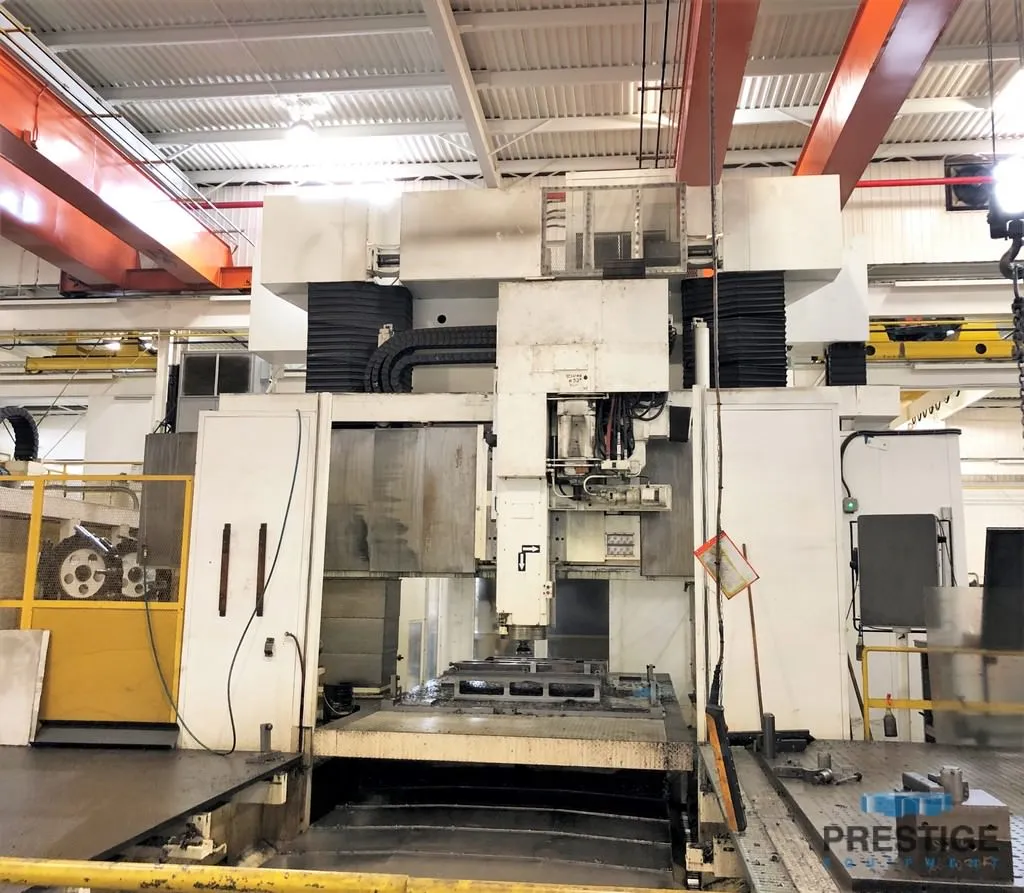

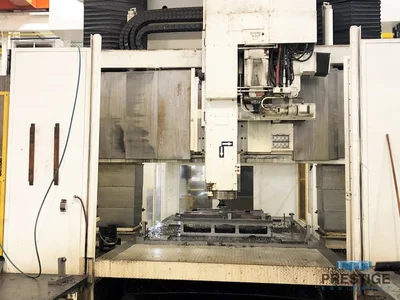

USED FOREST-LINE VECO MILL 463 5-FACE
Overview
Specifications
| X-Axis | 236" | 5,994.4 mm |
|---|---|---|
| Y-Axis | 141" | 3,581.4 mm |
| Z-Axis | 74.8" | 1,899.9 mm |
| Power | 84 hp | 62.6 kW |
| RPM | 2,000 RPM | 2,000 RPM |
| # ATC | 100 | 100 |
| Taper | #50 ANSI | #50 ANSI |
| Table-W | 98" | 2,489.2 mm |
| Table-L | 138" | 3,505.2 mm |
CAPACITY:
Pallet Size, (2): 98" x 138"
X-Axis: 236"
Y-Axis: 141"
Z-Axis, Cross Rail: 74.8"
W-Axis, Ram Stroke: 39.4"
Distance Between Columns: 122"
Height Under Vertical Spindle: 98"

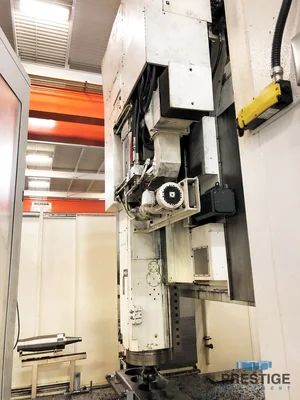

Ram Cross Section: 18" x 18"
Spindle Speeds, 4-Ranges: 10-2000 RPM
Spindle Drive Motor: 84 HP
Spindle Taper: #50 ANSI
Rapid Traverse: 400 IPM
Table Weight Capacity: 50,000 LB
Equipped With:

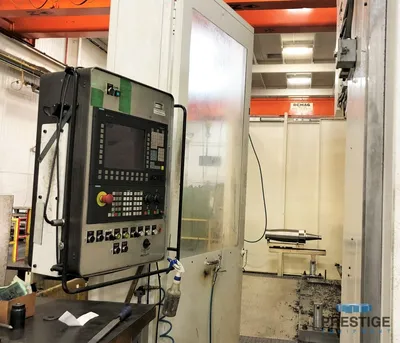

Siemens Sinumerik 840SL CNC Controls (Retrofit 2014)
Simoreg DC Master Spindle Drive
Sinamics 120 Servos
100 Station Automatic Toolchanger
Automatic Attachment Changer
Right Angle Attachment
Two Spindle Extentions
Thru Spindle Coolant
Renishaw Probe
Broken Tool Detection
NOTE:
Complete Factory Retrofit including Electrical, Hydrostatic and Bridge Controls
Including New Siemens Controls, Motors, Drives, Cabinet and Chiller
Features:
Siemens Sinumerik 840SL CNC Controls (Retrofit 2014)
Simoreg DC Master Spindle Drive
Sinamics 120 Servos
100 Station Automatic Toolchanger
Automatic Attachment Changer
Right Angle Attachment
Two Spindle Extentions
Thru Spindle Coolant
Renishaw Probe
Broken Tool Detection
