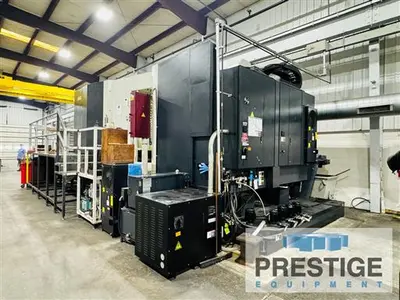

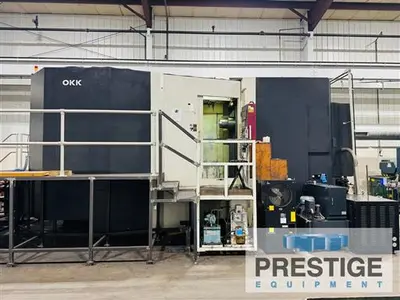

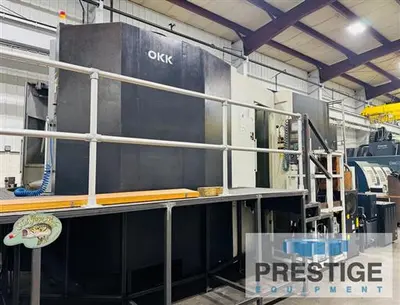

USED 2007 OKK HM-1250S

CAPACITY:
X-Axis Travel: 66.93"
Y-Axis Travel: 55.12"
Z-Axis Travel: 48.82"
Maximum Work-piece: 77.56" x 59.84"
Number Of Pallets: 2
Pallet Size: 49.21" x 49.21"
Pallet Indexing: 0.001 Degree
Weight Capacity: 6600 Lbs.
Spindle Center to Table Top: 2.76"-57.87"
Spindle Nose to Table Center: 14.17"-62.99"
Spindle Speeds: 8,000 RPM
Spindle Taper: #50 CAT
Spindle Motor: 40 HP
Tool Changer: 60 ATC
Maximum Tool Diameter: 4.53" / 10.63"
Maximum Tool Length: 23.62"
Maximum Tool Weight: 55 lbs
Rapid Traverse, (X,Y & Z): 1889 IPM
Machine Weight: 72,000 lbs

CNC CONTROL OPTIONS:

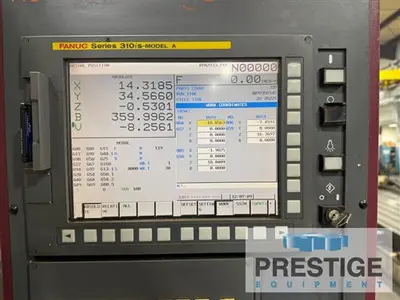

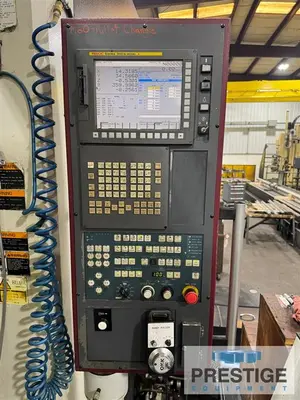

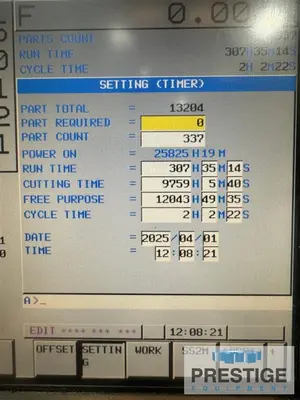

Fanuc 310iS-A 4-Axis CNC, Graphic Display, 10.4" Color TFT:
USB Port, PC/MCIA Interface:
Program Restart:
Stored Pitch Error Compensation:
Spindle Orientation:
Inch/Metric Conversion:
Canned Cycles:
Automatic Corner Override:
48 Pairs of Additional Work Coordinate System:
Cutter Compensation C:
Tool Offset Memory C:
Background Editing:
Macro Executor:
Custom Macro B:
PMC Function:
Stored Stroke Check 2, 3:
HQ Control:
Helical Interpolation:
512 KB Program Memory:
Programmable Mirror Image:
120 Registered Programs:
200 Sets of Tool Offsets:
128 Pairs of Tool Life Management:
Digital Servo Function:
Controllable Axes Expansion:
Second Reference Point Return:

Equipped With:

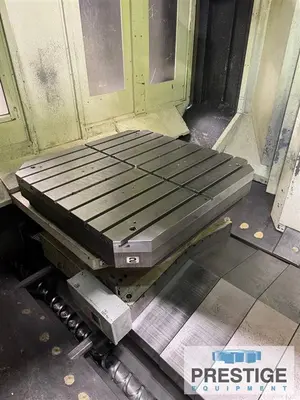

(2) 49.21" x 49.21" Pallets
Full B-Axis Pallet Contouring/Rotation
60-Position Automatic Tool Changer
Through Spindle Coolant (1000 psi)
Blum Laser Auto Tool Length Measurement
Tool Breakage Detection
Rigid Tapping
Renishaw Touch Probe
Manual Pulse Generator
Dual Chip Augers

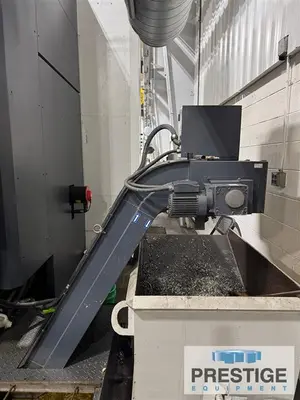

Hakusan Chip Conveyor (Left Rear Exit)

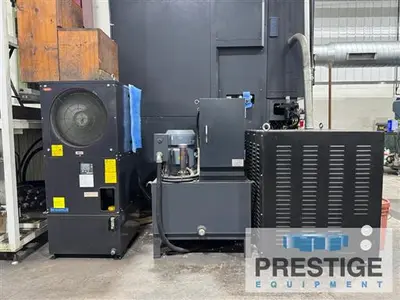

Spindle Chiller Unit
Multi-Tap Transformer
Three Color Tower Light
B-Axis Linear Scales
Dual Position Feedback

LOCATION:
Under Power In Midwest Plant

Features:
Fanuc 310iS-A 4-Axis CNC Control
(2) 49.21" x 49.21" Pallets
60-Position Automatic Tool Changer
Full B-Axis Contouring
Through Spindle Coolant
Probe
Chip Conveyor
