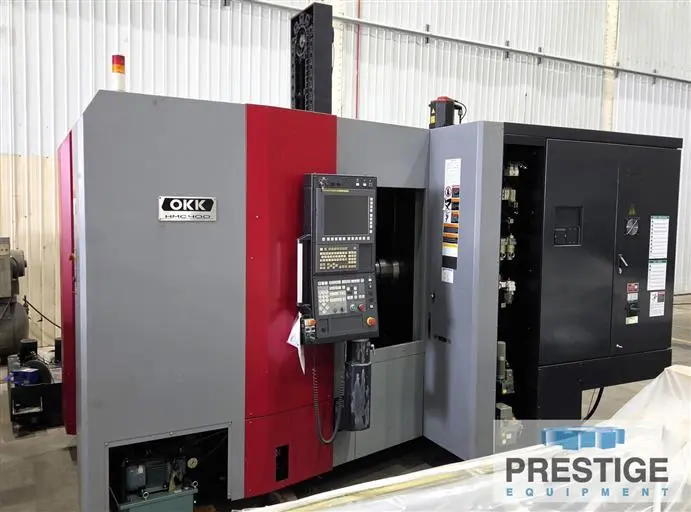

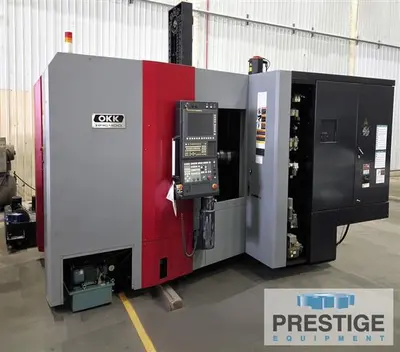

USED 2015 OKK HMC400

CAPACITY:
X-Axis Travel: 22.05"
Y-Axis Travel: 22.05"
Z-Axis Travel: 27.17"
Max. Workpiece Diameter x Height: 24.8" x 36.22"
Table Top To Spindle Centerline: 3.15-25.20"
Table Center To Spindle Nose: 1.97-29.13"
PALLETS:
Number Of Pallets: 2
Pallet Size: 15.75" x 15.75"
Pallet Indexing: 0.001 Degree, Full B-Axis

SPINDLE:
Spindle Speeds: 100-15,000 RPM
Spindle Motor: 50 HP
Spindle Taper: CAT 40
Spindle Torque: 184 FT/LBS

TOOL CHANGER:
Tool Capacity: 60 ATC
Max. Tool Dia. Adjacent Full/Empty: 3.74"/6.69"
Max. Tool Length: 17.72"
Max. Tool Weight: 26 Lbs.

FEEDRATES:
Rapid Traverse Rate, XYZ Axes: 2480 IPM
Cutting Feed Rate XYZ Axes: 0.04"-575 IPM

DIMENSIONS & WEIGHTS:
Floor Space Required: 102.56" x 76.38"
Machine Height: 103.94"
Approximate Weight: 19,000 LBS

Equipped With:
Fanuc 31i-B CNC Control
Dual 15.7" x 15.7" Pallets
Full B-Axis Contouring
15,000 RPM Spindle

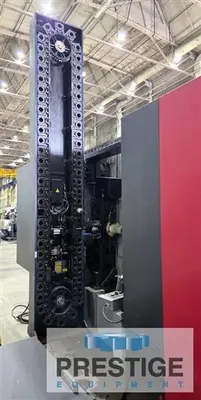

60-Station Automatic Tool Changer
High Pressure Thru-Spindle Coolant
Renishaw OMP60 Probe System
Daikin Inverter
LNS Turbo HB Chip Conveyor
Power On: 39,130
Cutting Time: 15,788

LOCATION:
Under Power In Our Philadelphia Warehouse

Features:
Fanuc 31i-B 4-Axis CNC Control
Full B-Axis Contouring
Dual 15.7" x 15.7" Pallets
60-Station ATC
15,000 RPM Spindle
Thru-Spindle Coolant
Renishaw OMP60 Probe System
Chip Conveyor
