| X-Axis | 78.7" | 1,999 mm |
| Y-Axis | 51.2" | 1,300.5 mm |
| Z-Axis | 51.2" | 1,300.5 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 120 | 120 |
| Taper | HSK 100 | HSK 100 |
| Pallet-W | 59" | 1,498.6 mm |
| Pallet-L | 47.2" | 1,198.9 mm |
| # Axis | 5 | 5 |
CAPACITY:
X-Axis Cross Travel: 78.7"
Y-Axis Vertical Travel: 51.2"
Z-Axis Longitudinal Travel: 51.2"
A/C-AXIS SPINDLE:
Spindle Type: 3 + 2 Axis
Spindle Speeds: 5-12,000 RPM
Spindle Drive: 40 HP / 29 HP
Spindle Taper: HSK 100
A-Axis Rotation: -30/+30 Degree
C-Axis Rotation: +/-185 Degree
C-Axis Indexing: 0.001 Degree

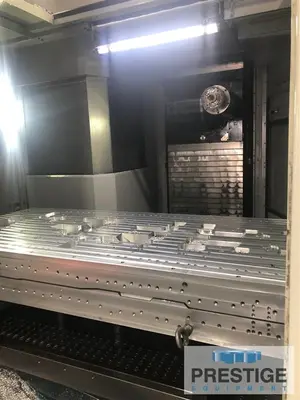

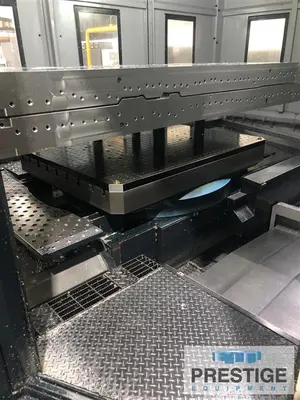

B-AXIS ROTARY TABLE:
Table Size: 59" X 47.2"
Table Weight Capacity: 22,000 Lbs.
FEEDS:
Rapid Traverse, (X, Y & Z): 787 IPM
Cutting Feed Rate: 787 IPM
Equipped With:

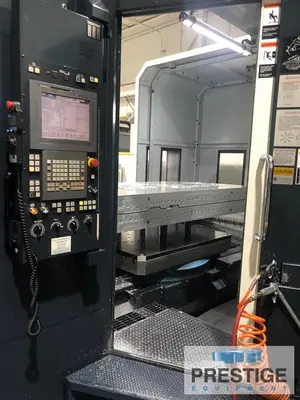

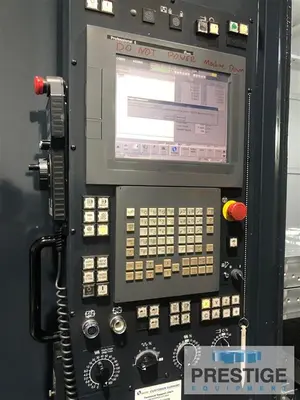

Makino Pro 5 (Fanuc Series 30i) CNC Control
3-Plus-2 Indexing Spindle Head

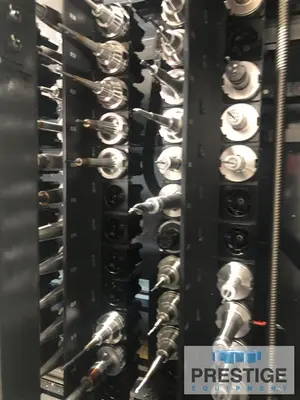

120-Station Automatic Tool Changer

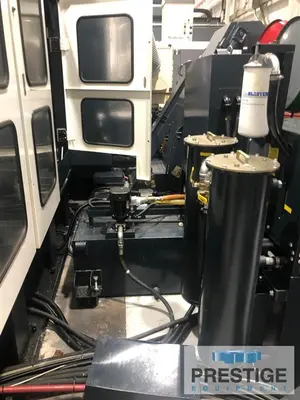

Through Spindle Coolant (1000 PSI)
Renishaw OMP60 Probe
Automatic Non-Contact Tool Measuring Function
Linear Interpolation
Rigid Tapping
Adaptive Control Function
Helical Interpolation
Chip Conveyor
Features:
Makino Pro 5 (Fanuc Series 30i) CNC Control
3-Plus-2 Spindle Head
Through Spindle Coolant (1000 PSI)
120 Station Automatic Tool Changer
Renishaw Probe
