| X-Axis | 21.6" | 548.64 mm |
| Y-Axis | 15.7" | 398.78 mm |
| Z-Axis | 19.7" | 500.38 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 32 | 32 |
| Taper | CAT #40 | CAT #40 |
| Pallet-W | 15.7" | 398.78 mm |
| Pallet-L | 15.7" | 398.78 mm |
CAPACITY:
X-Axis Travel: 21.6"
Y-Axis Travel: 15.7"
Z-Axis Travel: 19.7"
Distance from Spindle to Tbl Surface: 5.9" x 21.6"
Distance Spindle Nose to Tbl Center: 4.7"-24.4"
Pallet Size (2-Pallets): 15.7" x 15.7"
B-Axis Indexing: 1 Deg.
Pallet Load Capacity: 1,100 Lbs.
Spindle Speed Range: 6000 RPM
Spindle Taper: CAT #40
Rapid Traverse (X,Y,Z): 590 IPM
Cutting Feed Rate: 0.004-157 IPM
Spindle Drive Motor: 10 HP
Approximate Dimensions: 180" x 109" x 107"
Approximate Weight: 24,000 Lbs.
Equipped With:

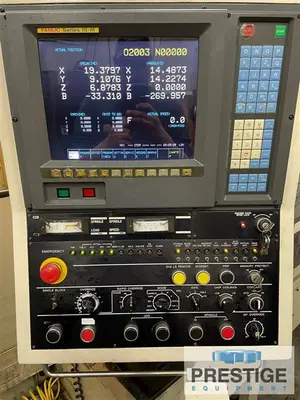

Fanuc 15M CNC Control
32 Station Automatic Tool Changer
Chip Conveyor
NOTE:
Inspect Under Power in a Plant
Features:
Fanuc 15M CNC Control
32 Station Tool Changer
Chip Conveyor
