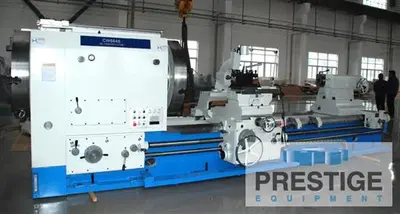

USED 2025 SPARK OIL COUNTRY

SPECIFICATIONS:
Spindle Bore: 18.11"
Min. Clamping Diameter Of Chucks: 12.38"
Swing Over Bed: 62.99"
Swing Over Carriage: 47.24"
Distance Between Centers: 157.48"
Max. Weight Capacity Between Centers: 13,200 Lbs
Width Of Bed: 38.18"
Spindle Speed, 4-ranges: 3.15 To 315 RPM
Metric Threads. (44): 1 To 120 MM
Inch Threads, (37): 30 To 1 / 4 T.p.i.
Module Threads, (46): 0.5 To 60
Diametric Pitchs, (46): 60 To 0.5
Max. Travel Of Cross Slide: 31.88"
Max. Travel Of Compound: 11.81"
Taper Turning: Max. Cutting Length: 31.49"
Diameter Of Tailstock Sleeve: 6.29"
Taper Of Tailstock Sleeve: Metric No. 80
Max. Movement Of Tailstock Sleeve: 11.81"
Power Of Main Motor: 30 Kw 40 HP
Electrical Power: 380V/3PH/50HZ
Net Overall Dimension Of The Machine: 334.6" × 98.42" × 72.93"
Machine Weight: 33,000 Lbs

Equipped With:
18.11" Spindle Bore Diameter

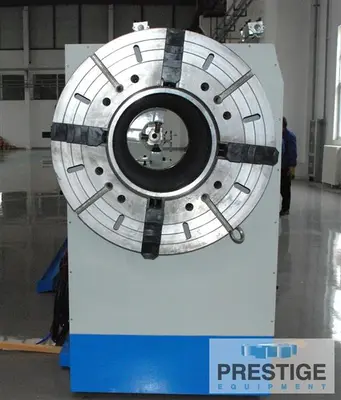

39.37" 4-Jaw Chucks Mounted Front & Rear Mounted
4-Way Tool Post
Inch/Metric Threading
Taper Turning Attachment
28.4" Roller Type Steady Rests
8.66" Follow Rest
Dead Center
Live Center
Coolant System
Work Light
Rapid Traverse
Motorized Tailstock
Special Tools
30 HP Spindle Motor 440V/3Ph/60Hz

NOTE:
Machine Sold with 1 Year Parts Warranty
5-Month Delivery From Order

Features:
18.11" Spindle Bore Diameter
39.37" 4-Jaw Chucks Mounted Front & Rear Mounted
4-Way Tool Post
Inch/Metric Threading
Taper Turning Attachment
28.4" Roller Type Steady Rests
8.66" Follow Rest
Dead Center
Live Center
Coolant System
Work Light
Rapid Traverse
Motorized Tailstock
Special Tools
30 HP Spindle Motor 440V/3Ph/60Hz
