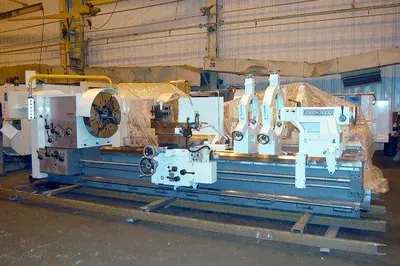

USED 2023 CNC TAKANG TK1270
Overview
Specifications
| Swing | 67.71" | 1,719.8 mm |
|---|---|---|
| Centers | 125.98" | 3,199.9 mm |
| Spindle Bore | 12" | 304.8 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 390 RPM | 390 RPM |
CAPACITY:
Swing Over Bed: 50"
Swing Over Cross Slide: 37.16"
Swing over Gap: 67.71"
Distance Between Centers: 125.98"

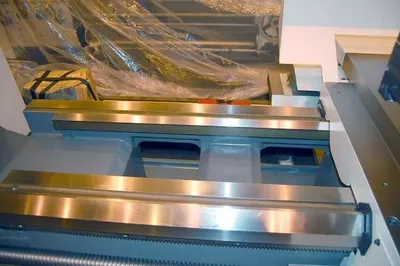

Bed Width: 24.60"
Spindle Bore: 12"
Spindle Nose: A2-20
Spindle Speeds (18).................... 2-390 RPM: 2-390 RPM
Maximum Weight Between Centers: 15,400 Lbs
Maximum Weight with 1-Steady Rest: 17,600 Lbs
Maximum Weight with 2-Steady Rests: 20,900 Lbs
Quill Diameter: 6.49"
Center Taper: #6 MT
Quill Travel: 11.81"
Approximate Weight: 17,820 Lbs.
Equipped With:

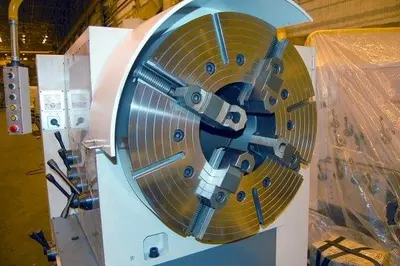

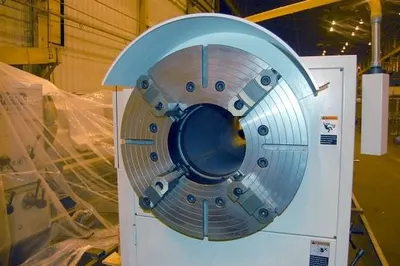

(2) 30" 4-Jaw Chucks with 12" Bore
Inch/Metric Threading
Taper Attachment

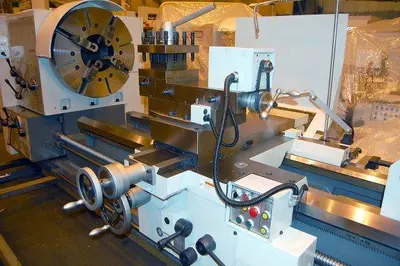

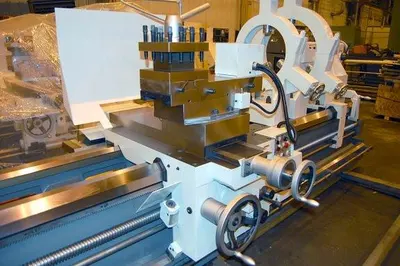

4-Way Tool Post
6-Position Rapid Traverse
Adaptor For Rear Chuck

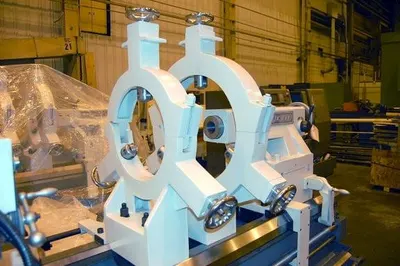

Steady Rest (3.9"-14.9")
Steady Rest (13.7"-25.5")
25 HP Main Motor
NOTE:
Machine is sold with a 1 year PARTS Warranty
Delivery 5-Months From Order
Features:
Brand New Built To Order, 5-Months Delivery
12" Spindle Bore
Front & Rear Chucks
