USED SPARK OIL COUNTRY
Overview
Specifications
| Swing | 39.37" | 1,000 mm |
|---|---|---|
| Centers | 118.11" | 3,000 mm |
| Spindle Bore | 11.02" | 279.91 mm |
| Power | 29 hp | 21.6 kW |
| RPM | 315 RPM | 315 RPM |
CAPACITY:
Maximum Swing Over Bedways: 39.37"
Maximum Swing Over Carriage: 27.55"
Distance Between Centers: 118.11"
Maximum Machining Length: 110.23"
Spindle Hole Diameter: 11.02"
Spindle Speeds (18): 5-315 RPM
Weight Between Centers: 8,800 lbs
Crosslide Travel: 23.62"
Topslide Travel: 9.84"
Metric Thread Range (44): 1-120 MM
Whitworth Thread Range (37): 30-1+1/8 TI
Module Threads (46): .5-60 MM
Tailstock Diameter: 4.72"
Tailstock Taper: #6 MT
Tailstock Travel: 11.81"
Spindle Motor: 29 HP (22KW)
Bed Width: 29.72"
Machine Dimensions: 216" x 67" x 59"
Machine Weight: 14,960 lbs
Equipped With:
Pendant Control

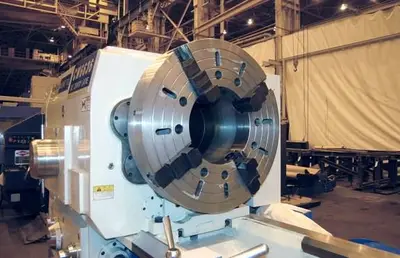

(2) 31.49" 4-Jaw Chucks Mounted Front & Rear Mounted
4-Way Tool Post
Inch/Metric Threading
Taper Turning Attachment
(2) Large Roller Type Steady Rests: 1.96"-18.50"
Follow Rest: 1.96" - 8.66"
Dead Center
Live Center
Coolant System
Work Light
Rapid Traverse

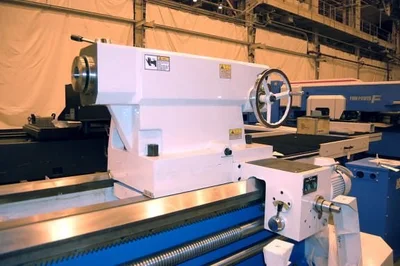

Motorized Tailstock
Special Tools
24 HP Spindle Motor 440V/3Ph/60Hz
NOTE:
Machine Sold with 1 Year Parts Warranty
Delivery 5-Months From Order
Features:
11.02" Spindle Bore Diameter
Brand New, Made To Order
