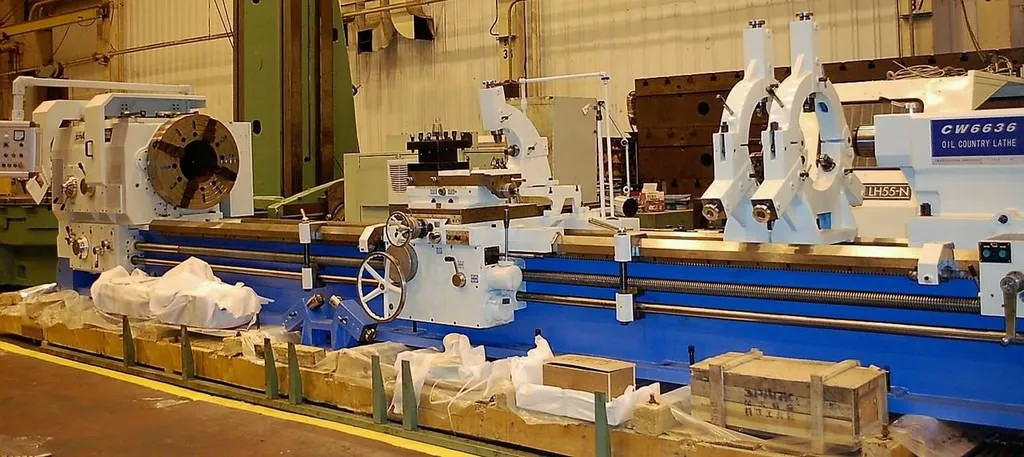

USED SPARK OIL COUNTRY
Overview
Specifications
| Swing | 39.37" | 1,000 mm |
|---|---|---|
| Centers | 236.12" | 5,997.4 mm |
| Spindle Bore | 14.17" | 359.92 mm |
| Power | 29 hp | 21.6 kW |
| RPM | 315 RPM | 315 RPM |
CAPACITY:
Maximum Swing Over Bedways: 39.37"
Maximum Swing Over Carriage: 25.1"
Distance Between Centers: 236.12"
Spindle Hole Diameter: 14.17"
Spindle Speeds (18): 6.3-315 RPM
Weight Between Centers: 13,200 lbs
Crosslide Travel: 20.47"
Topslide Travel: 11.81"
Metric Thread Range (44): 1-120 MM
Whitworth Thread Range (37): 30-1+1/8 TI
Module Threads (46): .5-60 MM
Tailstock Diameter: 6.3"
Tailstock Taper: #80 Metric
Tailstock Travel: 11.81"
Spindle Motor: 29 HP (22KW)
Bed Width: 29.72"
Machine Dimensions: 365" x 74" x 75"
Machine Weight: 37,500 lbs
Equipped With:

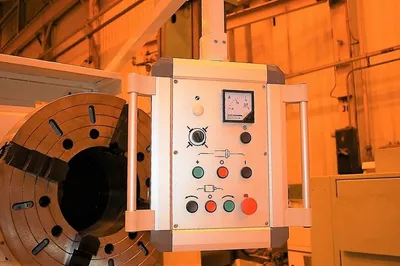

Pendant Control
(2) 31.49" 4-Jaw Chucks Mounted Front & Rear Mounted
Front & Rear Chuck Guards

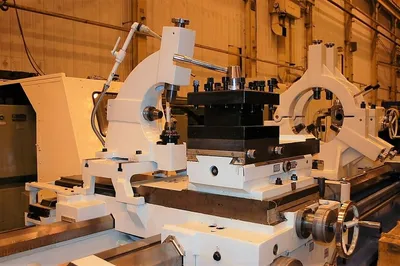

4-Way Tool Post
Inch/Metric Threading
Taper Turning Attachment

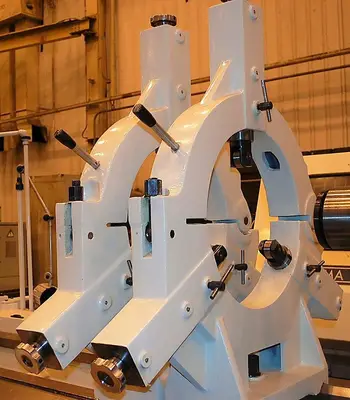

(2) Large Roller Type Steady Rests: 1.96"-18.50"
Follow Rest: 1.96" - 8.66"
Dead Center
Live Center
Coolant System
Work Light
Rapid Traverse
Motorized Tailstock
Special Tools
30 HP Spindle Motor 440V/3Ph/60Hz
NOTE:
Brand New Machine
5-Months Delivery
