Keysight N6700B N6744B Modular Power System, 400W Mainframe, 35V, 3A, 105W DC Power Module

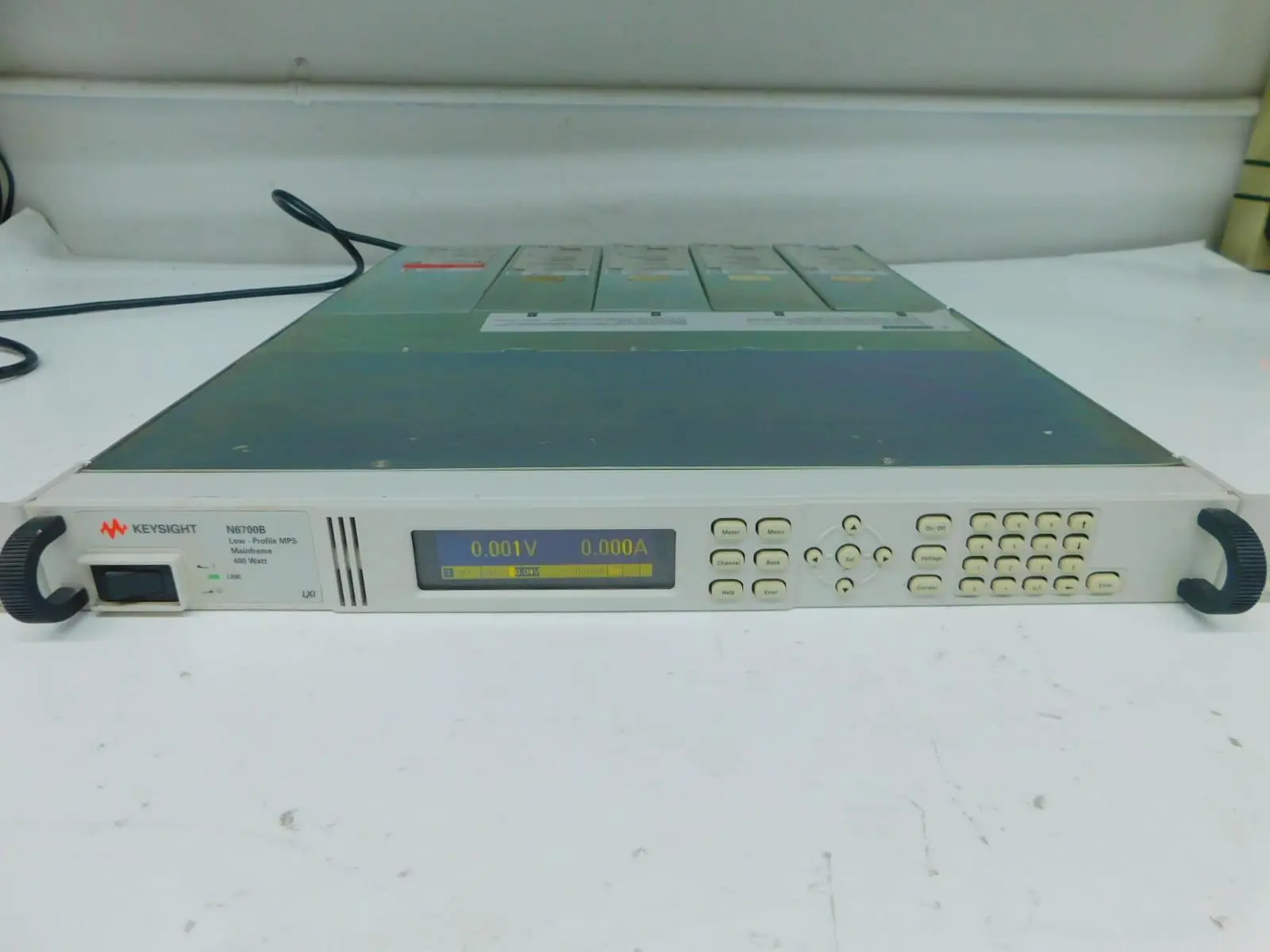

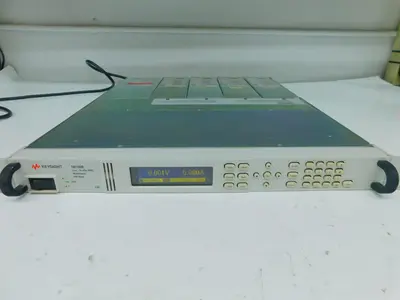

THE KEYSIGHT N6700B IS A 400W, 1U LOW-PROFILE MODULAR POWER SYSTEM MAINFRAME DESIGNED FOR AUTOMATED TEST EQUIPMENT (ATE) ENVIRONMENTS. THIS 4-SLOT MAINFRAME ENABLES THE INTEGRATION OF UP TO FOUR INDEPENDENT DC POWER MODULES, ALLOWING FOR CUSTOMIZED COMBINATIONS OF VOLTAGE, CURRENT, AND PERFORMANCE LEVELS WITHIN A SINGLE RACK UNIT. IT FEATURES STANDARD CONNECTIVITY THROUGH GPIB, USB 2.0, AND 10/100 BASE-T ETHERNET (LXI CLASS C COMPLIANT) INTERFACES. THE UNIT OPERATES ON A UNIVERSAL AC INPUT OF 100-240 VAC AT 50/60/400 HZ AND UTILIZES FAN SPEED CONTROL TO MINIMIZE ACOUSTIC NOISE DURING OPERATION.

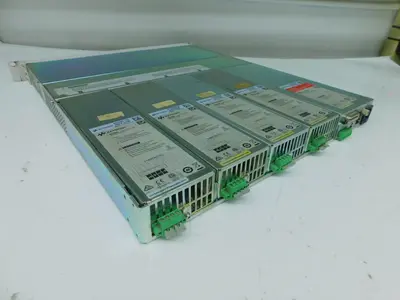

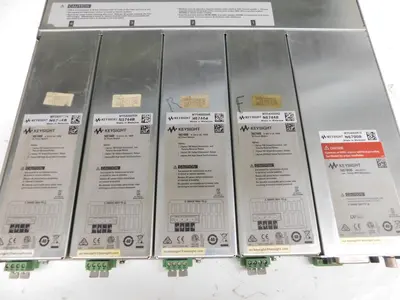

THIS SPECIFIC CONFIGURATION INCLUDES N6744B MODULES. THE N6744B IS A BASIC DC POWER MODULE THAT DELIVERS A MAXIMUM OUTPUT OF 105W WITH RATINGS OF 0 TO 35V AND 0 TO 3A. IT PROVIDES PROGRAMMABLE VOLTAGE AND CURRENT WITH A PROGRAMMING ACCURACY OF 0.1% + 35MV AND A CURRENT MEASUREMENT ACCURACY OF 0.15% + 20MA. THE MODULE FEATURES LOW RIPPLE AND NOISE SPECIFICATIONS, WITH VOLTAGE AT 5MV RMS AND 15MV PEAK-TO-PEAK, AND CURRENT AT 2MA RMS. IT SUPPORTS BOTH TWO-WIRE LOCAL SENSING AND FOUR-WIRE REMOTE SENSING TO ENSURE PRECISE REGULATION AT THE DEVICE UNDER TEST. ALL MODULES IN THE N6700 SERIES INCLUDE BUILT-IN PROTECTION AGAINST OVER-VOLTAGE, OVER-CURRENT, AND OVER-TEMPERATURE CONDITIONS, WITH A FAST FAULT-DETECTION RESPONSE TIME OF 10 MICROSECONDS FOR SYSTEM-WIDE SHUTDOWN.
