| Swing | 33.46" | 849.88 mm |
| Centers | 472.44" | 12,000 mm |
| Spindle Bore | 4.09" | 103.89 mm |
| RPM | 1,250 RPM | 1,250 RPM |
| Swing Over Cross Slide | 19.68" | 499.87 mm |
SPECIFICATION:
Swing Over Bed: 33.46"
Swing Over Carriage: 27.55"
Distance Between Centers: 472.44"
Bed Width: 28.54"
Spindle Speed Range: 4 - 1,250 RPM
Spindle Bore: 4.09"
Spindle Nose: D1-11
Longitudinal Feedrate: .4 - 44.4 IPR
Cross Feedrate: .0005 - 32.25 IPR
Cross Slide Travel: 19.68"
Compound Slide Travel: 11.81"
Tailstock Quill Diameter: 5.47"
Tailstock Quill Taper: #6MT
Tailstock Quill Travel: 11.02"
Equipped With:
Newall Topaz Digital Readout

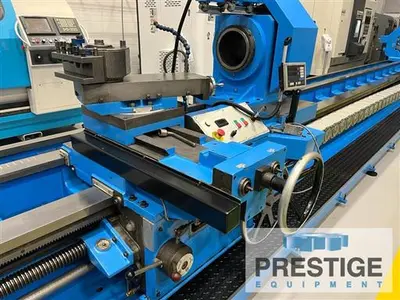

Quick Change Tool Post

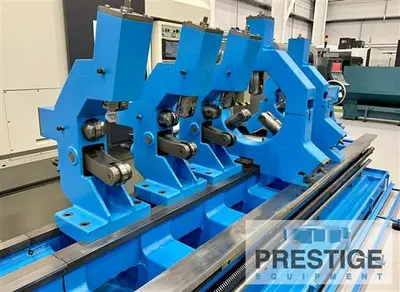

3 - Open Roller Steady Rests
1 - 11.81" Roller Steady Rest
1 - 19.68" Roller Steady Rest

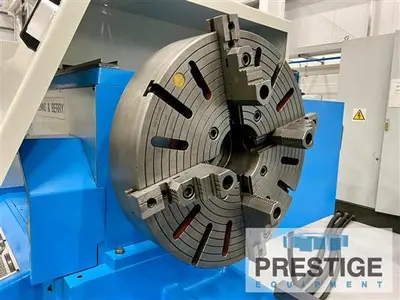

Windmill Steady w/ 9.8" Bore & 27.5" 4-Jaw Chuck
2 - Coolant Pumps
Tailstock
Features:
Newall Topaz Digital Readout
Quick Change Tool Post
3 - Open Roller Steady Rests
Tailstock
