| Swing | 51.57" | 1,309.9 mm |
| Centers | 209" | 5,308.6 mm |
| Power | 80 hp | 59.7 kW |
| RPM | 710 RPM | 710 RPM |
| Swing Over Cross Slide | 35.43" | 899.92 mm |
SPECIFICATIONS:
Maximum Swing Over Bedways: 51.57"
Swing Over Cross Slide: 35.43"
Cutting Diameter: 35.43"
Distance Between Centers: 209"
Spindle Speed Range, Low: 3.55-180 RPM
Spindle Speed Range, High: 14-710 RPM
Feed Range: .0039-236.22 IPM
Feed Override Rate: 236.22 IPM
X-Axis Rapid Traverse: 236.22 IPM
Y-Axis Rapid Traverse: 236.22 IPM
Threading: CNC Control
Chuck Capacity: 4" to 21.5"
Distance Tool Can Approach Chuck: 12"
Maximum Roll Weight Between Centers: 17,640 Lbs
Maximum Weight in Chuck Only: 5,512 Lbs
Tailstock Center Taper: MK6 Metric
Coolant Tank Capacity: 150 Gallons
Machine Weight: 44,000 Lbs
Main Motor: 80 HP
Equipped With:

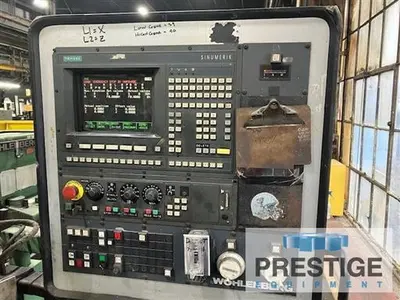

Siemens 820T CNC Control

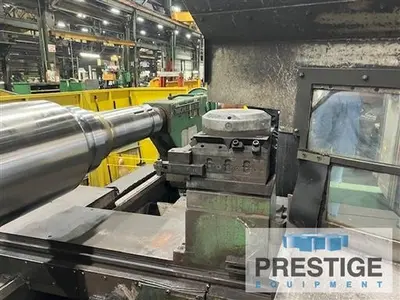

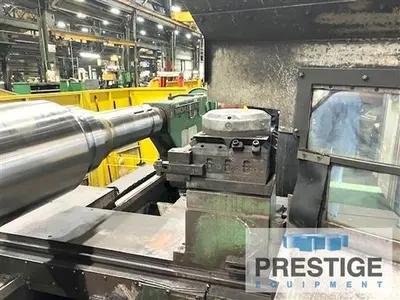

4-Position Sauter Turret
Spindle Speed Indicator
Coolant
Chip Conveyor
80 HP Main Motor
Features:
Siemens 820T CNC Control
4-Position Sauter Turret
80 HP
