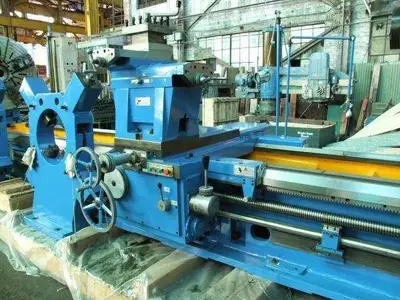

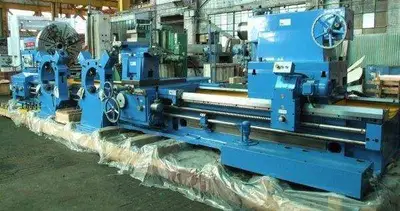

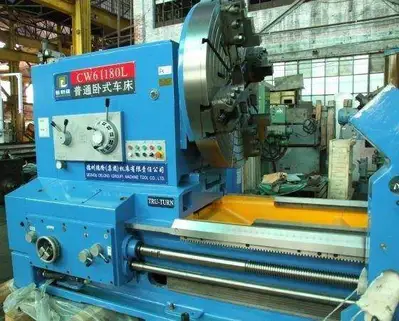

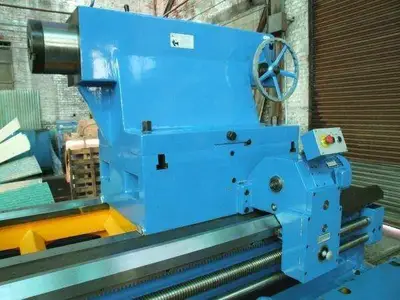

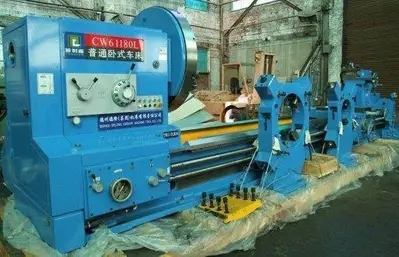

USED 2026 TRU TURN 1290/6M
Overview
Specifications
| Swing | 50.78" | 1,289.8 mm |
|---|---|---|
| Centers | 236.22" | 6,000 mm |
| Spindle Bore | 5.12" | 130.05 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 315 RPM | 315 RPM |
| Swing Over Cross Slide | 35.43" | 899.92 mm |
CAPACITY:
Swing Over Bed: 50.78"
Swing Over Cross Slide: 35.43"
Width of Guide Way: 43.30"
Distance Between Centers: 236.22"
Spindle Hole: 5.12"
Spindle Speeds (21 Speeds): 3.15-315 RPM
Tailstock Diameter: 10.24"
Tailstock Travel: 7.87"
Estimated Dimensions: 372.3" x 94"
Weight Capacity: 24,200 Lbs
Estimated Weight: 52,000 Lbs
Equipped With:
49.2" Diameter Face Plate with 4-Top Jaws
Flame Hardened Bed Ways
2-Roller Type Steady Rest: 27.5" & 17.71"
Power Drive To Top Slide For Conical Cutting
Swivel Compound
Inch / Metric Threading
Thread Dial
Center With Bushing
6-Way Power Rapid Traverse
Work Light
Pan Bed and Coolant System
Motorized Tailstock
40 HP Drive Motor With Controls
3/60/440 Volt Electrics
NOTE:
Delivery 5-Months From Order
Features:
Brand New Machine, 5-Month Delivery
49.2" Diameter Face Plate with 4-Top Jaws
Flame Hardened Bed Ways
2-Roller Type Steady Rest: 27.5" & 17.71"
Power Drive To Top Slide For Conical Cutting
Swivel Compound
Inch / Metric Threading
Thread Dial
6-Way Power Rapid Traverse
Pan Bed and Coolant System
Motorized Tailstock
40 HP Drive Motor With Controls
