| Swing | 72.44" | 1,840 mm |
| Centers | 118.11" | 3,000 mm |
| Spindle Bore | 5.12" | 130.05 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 315 RPM | 315 RPM |
| Swing Over Cross Slide | 57" | 1,447.8 mm |
CAPACITY:
Swing Over Bed: 72.44"
Swing Over Cross Slide: 57"
Width of Guide Way: 43.32"
Distance Between Centers: 118.11"
Spindle Hole: 5.12"
Spindle Speeds (21 Speeds): 3.15-315 RPM
Tailstock Diameter: 10.24"
Tailstock Travel: 7.87"
Estimated Dimensions: 254" x 94" x 88"
Weight Capacity: 20,000 Kg
Machine Weight: 47,500 Lbs
Equipped With:

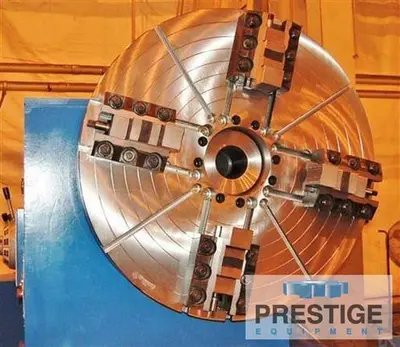

49.2" Diameter Face Plate with 4-Top Jaws
Flame Hardened Bed Ways

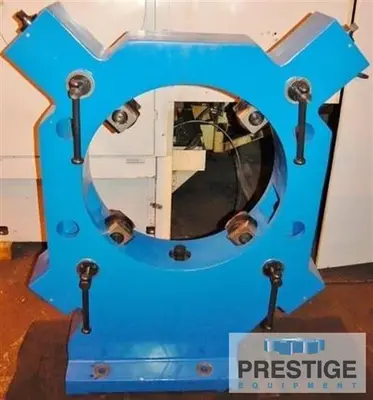

2-Roller Type Steady Rests: 27.5" & 17.71"
Power Drive To Top Slide For Conical Cutting

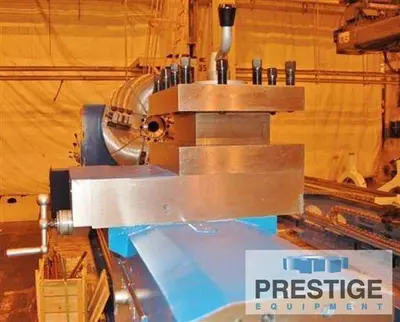

Swivel Compound
Inch / Metric Threading
Thread Dial
Center With Bushing
6-Way Power Rapid Traverse
Work Light
Pan Bed and Coolant System

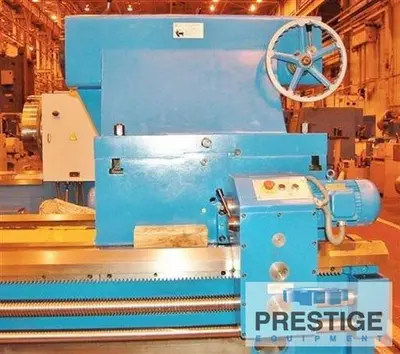

Motorized Tailstock
40 HP Drive Motor With Controls
3/60/440 Volt Electrics
DELIVERY:
5-Months From Order
Features:
Brand New Special Order, Delivery 5-Months From Order
Inch/Metric Threading
Hardened Ways
