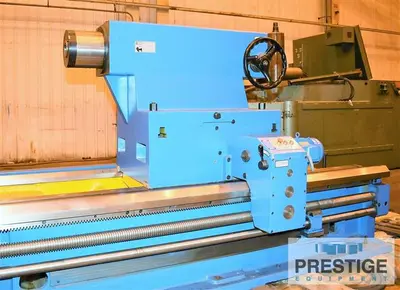

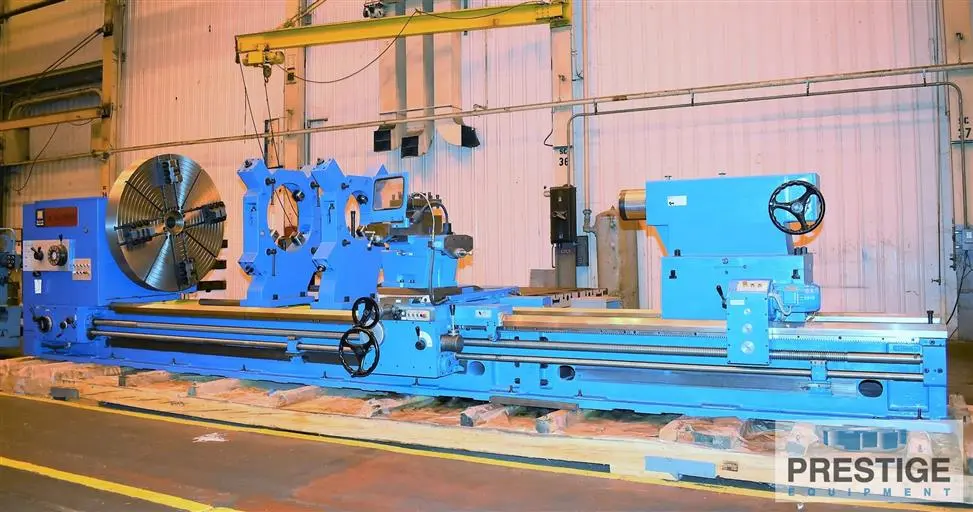

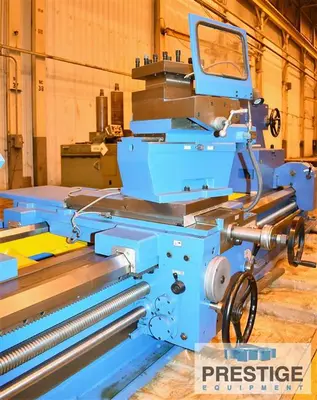

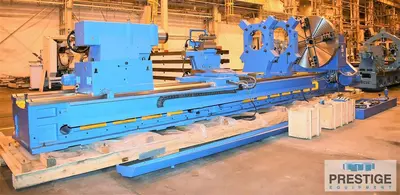

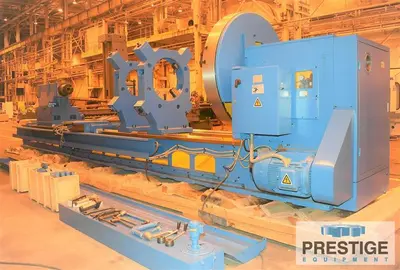

USED 2026 TRU TURN 1840/6M
Overview
Specifications
| Swing | 72.44" | 1,840 mm |
|---|---|---|
| Centers | 236.22" | 6,000 mm |
| Spindle Bore | 5.12" | 130.05 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 315 RPM | 315 RPM |
| Swing Over Cross Slide | 57" | 1,447.8 mm |
CAPACITY:
Swing Over Bed: 72.44"
Swing Over Cross Slide: 57"
Width of Guide Way: 43.3"
Distance Between Centers: 236.22"
Spindle Hole: 5.12"
Spindle Speeds (21 Speeds): 3.15-315 RPM
Tailstock Diameter: 10.24"
Tailstock Travel: 7.87"
Weight Capacity: 20,000 kg
Machine Weight: 52,000 Lbs
Floor Space L x W x Height: 372.3" x 94" x 88"
Equipped With:

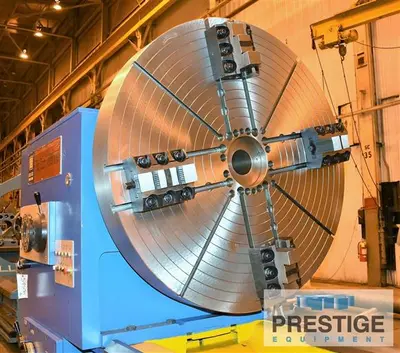

62.99" Diameter Face Plate with 4-Top Jaws
Flame Hardened Bed Ways
2-Roller Type Steady Rests: 27.5" & 17.71"
Power Drive To Top Slide For Conical Cutting
Swivel Compound
Inch / Metric Threading
Thread Dial
Center With Bushing
6-Way Power Rapid Traverse
Work Light
Pan Bed and Coolant System
Motorized Tailstock
40 HP Drive Motor with Controls
440/3/60 Volt Electrics
22 leveling pads
factory manual
NOTE:
ETA 5-6 Months from date on Confirmed Order
Includes 1-year Parts Warrantee.
Features:
Inch/Metric Threading
Hardened Ways
