| Swing | 80.31" | 2,039.9 mm |
| Centers | 236.22" | 6,000 mm |
| Spindle Bore | 5.12" | 130.05 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 315 RPM | 315 RPM |
| Swing Over Cross Slide | 64.96" | 1,650 mm |
CAPACITY:
Swing Over Bed: 80.31"
Swing Over Cross Slide: 64.96"
Width of Guide Way: 43.30"
Distance Between Centers: 236.22"
Spindle Speeds (21 Speeds): 3.15-315 RPM
Spindle Bore: 5.12"
Spindle Nose: A-15
Tailstock Diameter: 11.02"
Tailstock Travel: 11.81"
Taper of Tailstock Bore: 140 Metric
Weight Capacity: 33,000 lbs
Equipped With:

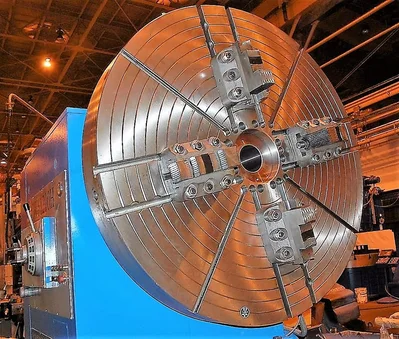

78.74" Diameter Face Plate with 4-Top Jaws
Flame Hardened Bed Ways
(2) Roller Type Steady Rest: 18.89 & 39.37"
Power Drive To Top Slide For Conical Cutting
Swivel Compound
Inch / Metric Threading
Built in 4-Way Tool Post
Pan Bed and Coolant System
Live Quill in Tailstock

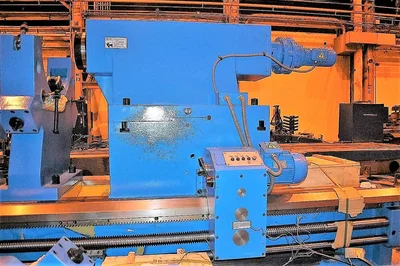

Motorized Tailstock
40 HP Drive Motor With Controls
3/60/440 Volt Electrics
1-Year Parts Warranty
DELIVERY:
Approx. 5-6 Months From Order
