| Swing | 80.31" | 2,039.9 mm |
| Centers | 118.11" | 3,000 mm |
| Spindle Bore | 5.12" | 130.05 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 315 RPM | 315 RPM |
| Swing Over Cross Slide | 64.96" | 1,650 mm |
SPECIFICATION:
Swing Over Bed: 80.31"
Swing Over Cross Slide: 64.96"
Width of Guide Way: 43.30"
Distance Between Centers: 118.11"
Spindle Speeds (21 Speeds): 3.15-315 RPM
Spindle Bore: 5.12"
Spindle Nose: A-15
Tailstock Diameter: 11.02"
Tailstock Travel: 11.81"
Taper of Tailstock Bore: 140 Metric
Weight Capacity: 33,000 lbs
Equipped With:
78.74" Diameter Face Plate with 4-Top Jaws
Hardened Bed Ways
Power Drive To Top Slide For Conical Cutting
Swivel Compound
Inch / Metric Threading
4-Way Tool Post
NSK Headstock Spindle Bearings
NSK Tailstock Quill Bearings
Live Quill in Tailstock

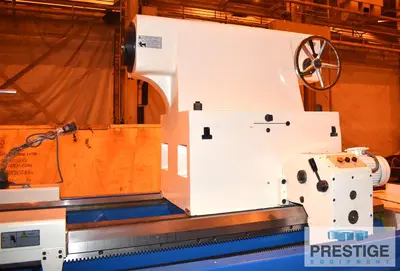

Motorized Tailstock
Chip Pans
40 HP Drive Motor With Controls

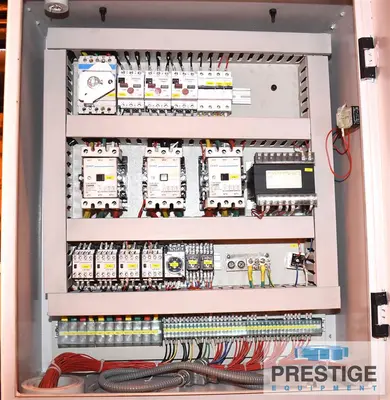

3/60/440 Volt Electrics
1-Year Parts Warranty
DELIVERY:
5-Months From Order
NOTE:
1-Year Parts Warranty
Features:
78.74" Diameter Face Plate with 4-Top Jaws
Hardened Bed Ways
Power Drive To Top Slide For Conical Cutting
Swivel Compound
Inch / Metric Threading
NSK Headstock Spindle Bearings
NSK Tailstock Quill Bearings
4-Way Tool Post
Live Quill in Tailstock
Motorized Tailstock
