| Swing | 49.21" | 1,249.9 mm |
| Centers | 196.85" | 5,000 mm |
| Spindle Bore | 4.13" | 104.9 mm |
| Power | 100 hp | 74.6 kW |
| RPM | 315 RPM | 315 RPM |
| Swing Over Cross Slide | 37" | 939.8 mm |
SPECIFICATION:
Maximum Swing Over Bedways: 49.21"
Maximum Swing Over Cross Slide: 37"
Distance Between Centers: 196.85"
Width Of Bed: 43.3"
Spindle Bore: 4.13"
Spindle Speeds (24): 1.6 - 315 RPM
Weight Capacity (Unsupported): 60,000 Lbs
Weight Capacity (2-Steady Rests): 80,000 Lbs
Equipped With:

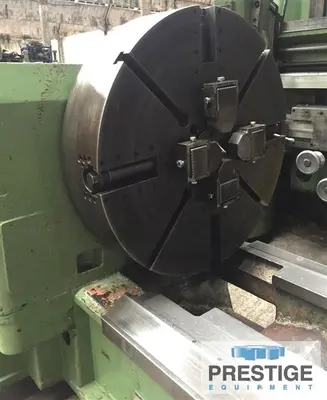

49" 4-Jaw Chuck
Power Top Compound for Taper Cutting
6-Way Power Rapid Traverse

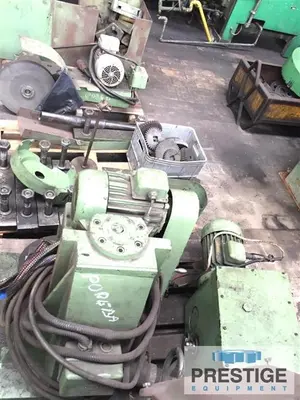

Grinding Attachment
Milling Attachment
Inch/Metric Threading
4-Way Toolpost

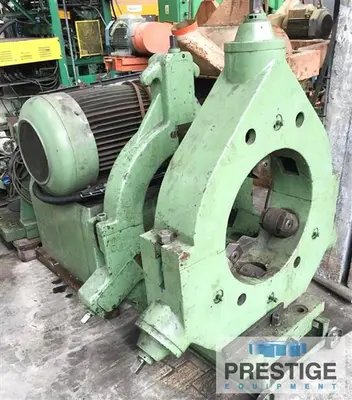

(2) Steady Rests
Coolant System

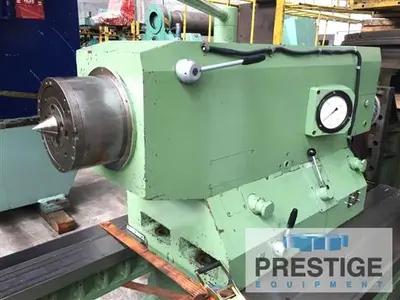

Power Tailstock
100 HP Main Spindle Motor
Features:
49" 4-Jaw Chuck
Power Top Compound for Taper Cutting
6-Way Power Rapid Traverse
Grinding Attachment
Milling Attachment
