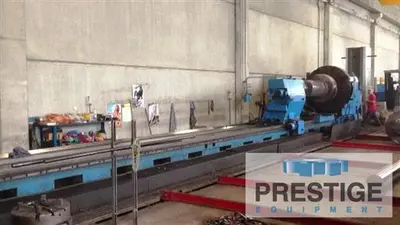

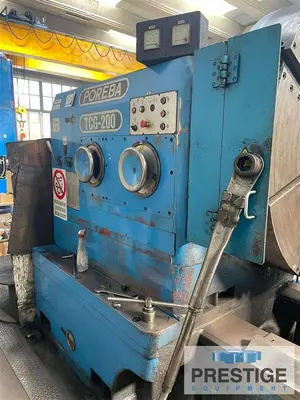

USED POREBA TCG 200/17M

SPECIFICATIONS:
Maximum Swing Over Bedways: 78.74"
Maximum Swing Over Carriage: 66.14"
Distance Between Centers: 669.29"
Spindle Speeds: 0.8-160 RPM
Spindle Speeds, Number: 24
Spindle Speed Ranges: 3
Spindle Bore: 4.13"
Spindle Torque, Maximum: 63,000 Nm
Width of Bed: 59.05"
Longitudinal Feed Rates: 0.007-6.29 IPR
Overall Feed Rates: 0.44-12.59 IPM
Rapid Traverse: 157.48 IPM
Threading, Metric: 1-192 MM
Threading, Inch: .125-30 TPI
Front Bearing Diameter: 12.59"

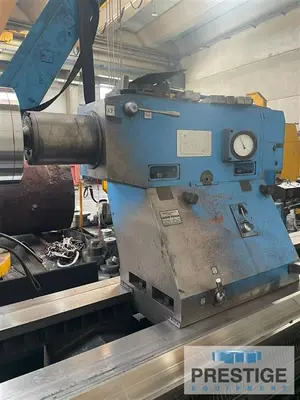

Tailstock Diameter: 11.02"
Tailstock Quill Travel: 7.87"
Tailstock Quill Rapid Traverse: 11.81 IPM
Tailstock Rapid Traverse On Bed: 59.05 IPM
Weight Capacity Between Centers: 66,000 Lbs
Weight Capacity with One Steady Rest: 77,000 Lbs
Weight Capacity with Two Steady Rest: 88,000 Lbs

Equipped With:

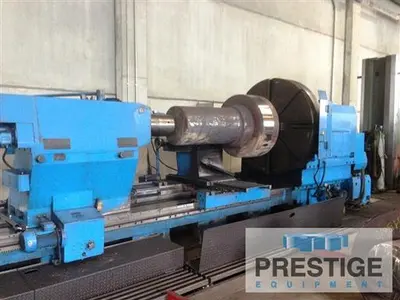

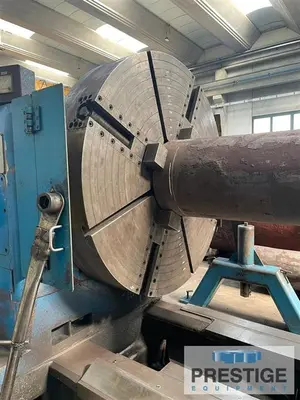

63" 4-Jaw Independent Chuck

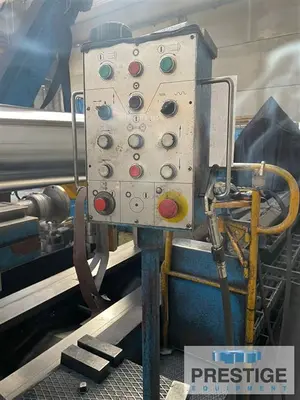

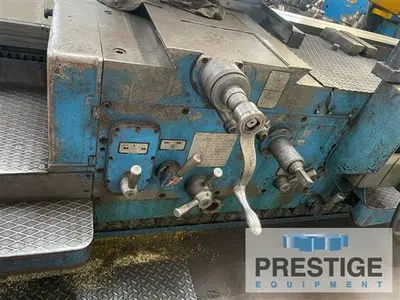

Operator Controls On Carriage
Inch/Metric Threading

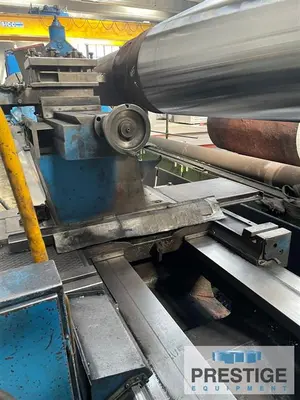

Power Compound
6-Way Power Rapid Traverse

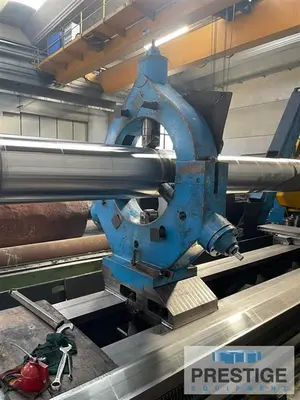

(3) Roller Type Steady Rests
Power Tailstock and Quill

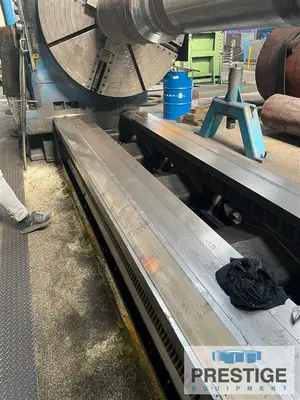

Hardened & Ground Replaceable Bedways
Hardened and Ground Gears & Spline Shafts
Heavy Duty Meehanite Casting
100 HP Main Drive

Features:
63" 4-Jaw Independent Chuck
100 HP Main Motor
Inch/Metric Threading
66,000 Lbs Unsupported Weight Capacity
