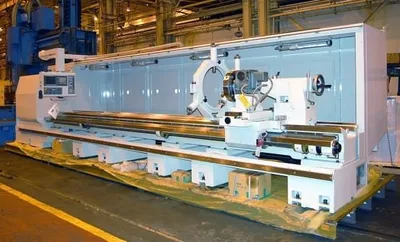

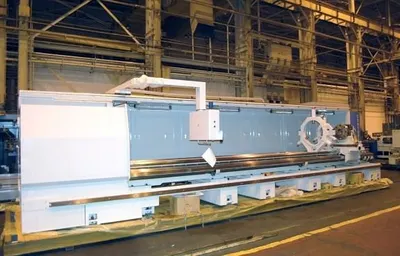

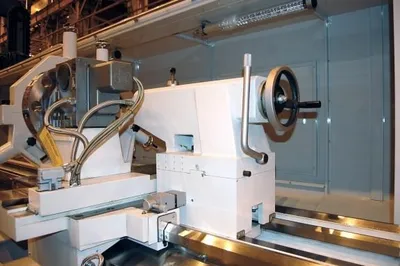

USED 2026 MICROCUT BNC 4000 X 6M

CAPACITY:
Swing Over Bed: 40.15"
Swing Over Cross Slide: 26.77"
Swing in Gap: 50.39"
Width of Bed: 22.5"
Maximum Turning Length: 236.22"
Max. Work Piece Weight w/ Tailstock: 6,600 Lbs
Max. Work Piece Weight - 1-Steady: 8,800 Lbs
Max. Work Piece Weight - 2-Steadies: 11,000 Lbs
Spindle Speeds, 2-Ranges: 15-1480 RPM
Spindle Hole Diameter: 4.17"

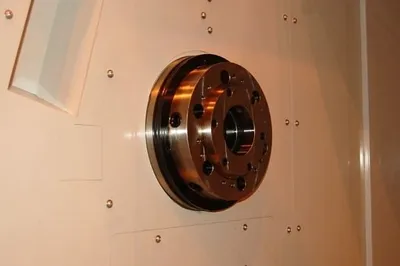

Spindle Nose Mount: A1-11
Quill Diameter: 4.92"
Quill Stroke: 9.055"
Quill Taper: #6 MT
Overall Dimensions: 351" x 123" x 92"
Machine Weight: 33,000 Lbs.

Equipped With:

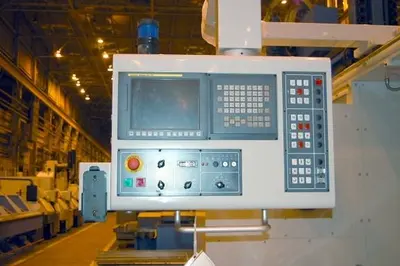

Fanuc 0iTD CNC Control with Manual Guide i
10.4" Monitor
RS 232 Communication Port
Fanuc Package Servo Motors
Thread Repair Function
Baruffaldi TB-200 VDI50/8T 8 Pos. Front Mounted Turret

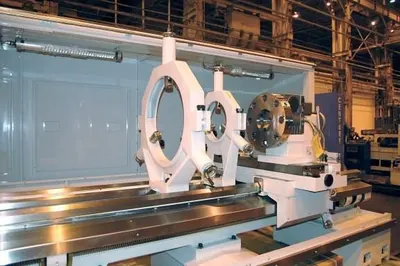

1.96" to 11.81" Capacity Roller Steady Rest
9.84" to 23.62" Capacity Roller Steady Rest
2-Step Variable Speed with Auto Spindle Step Change
Gap Bed
Automatic Lubrication System

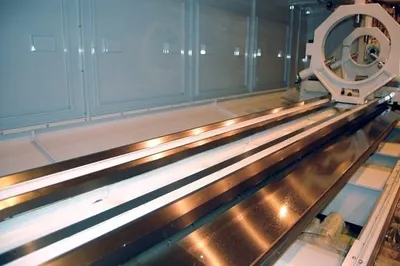

V-Type Bed Ways
Halogen Work Light
Full Length Chip Conveyor

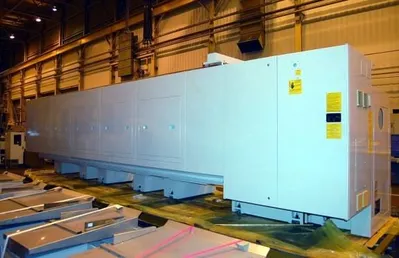

Travelling Front Door
Hardened Ways
Leveling Pads and Bolts
29 HP/44 HP Spindle Drive Motor 220/3/60 Cycle

Notes:
Full 1-Year Parts and Labor Warranty on Machine
Full 2-Year Parts and Labor Warranty on CNC Control
Delivery 4-Months

Features:
Fanuc 0iTD CNC Control with Manual Guide
Brand New
