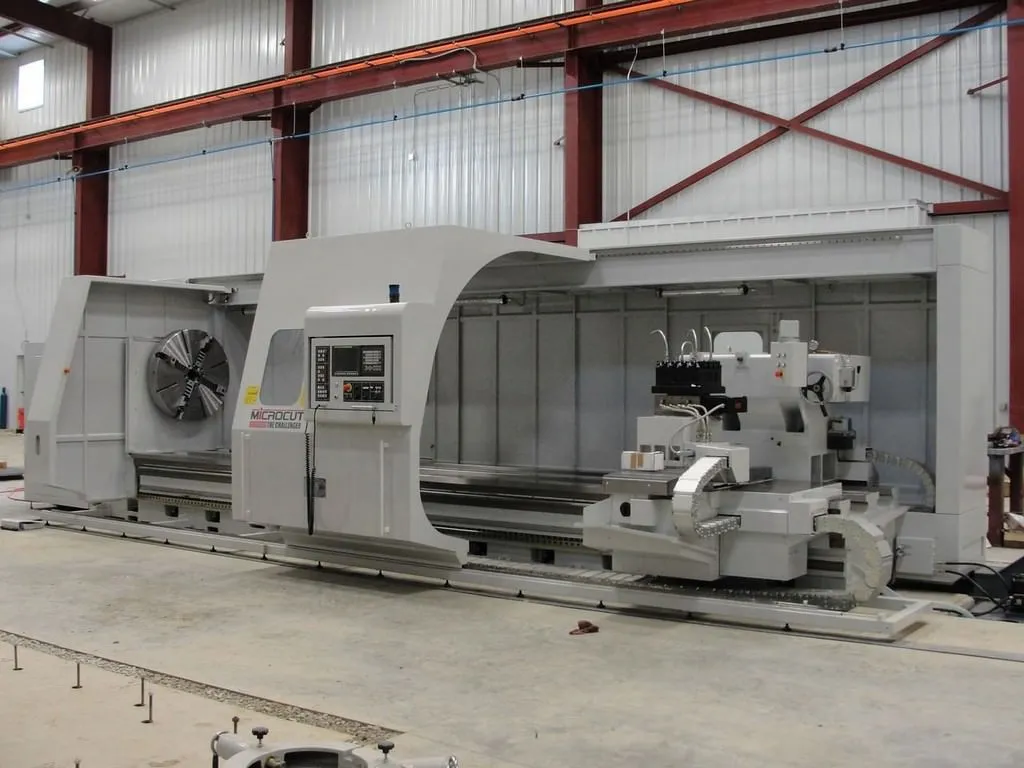

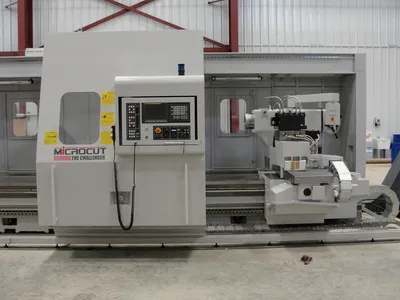

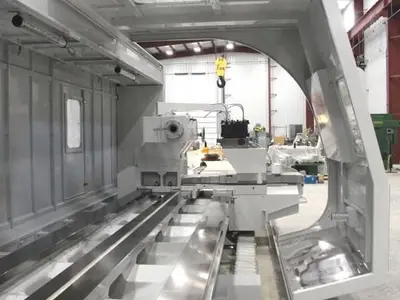

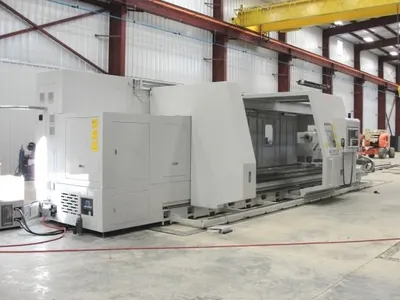

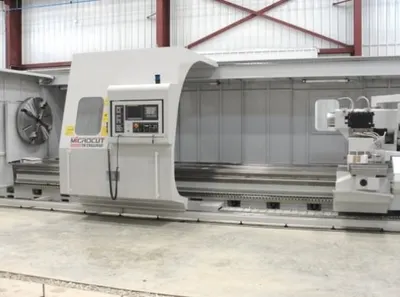

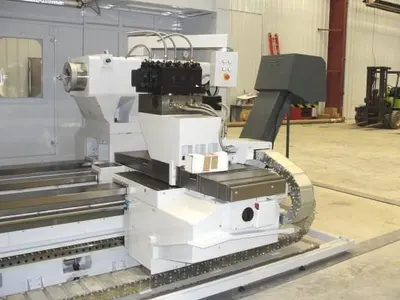

USED 2025 MICROCUT BNC5000 CNC

CAPACITY:
Swing Over Bed: 51.18"
Swing Over Cross Slide: 38.58"
Overall Bed Width: 47.24"
Maximum Turning Length: 157.48"
Maximum Weight Between Centers: 22,000 Lbs.
Weight Capacity with 2-Steady Rest: 33,048 Lbs.
X-Axis Travel: 32.08"
Z-Axis Travel: 236.22"
Spindle Speeds, 2-Ranges (Variable): 1-735 RPM
Spindle Bore: 6.02"

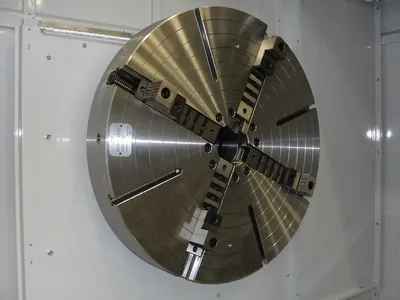

Spindle Nose Mount: A2-11
Spindle Drive Motor (220 Volt): 80 HP / 100 HP

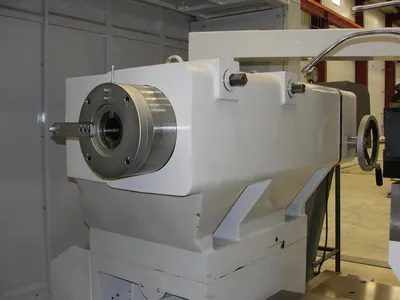

Quill Diameter: 9.44"
Quill Stroke: 9.05"
Quill Taper: #6 MT
Approximate Weight: 60,000 Lbs.

Equipped With:

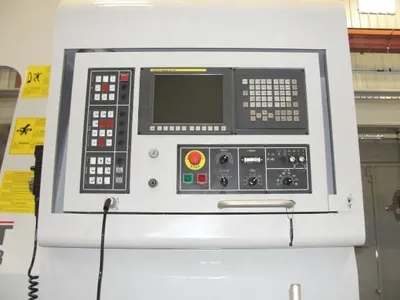

Fanuc 0iTD CNC Control with Manual Guide i
RS 232 Communication Port
Fanuc Package Servo Motor (Spindle & Axis Servo Motors)

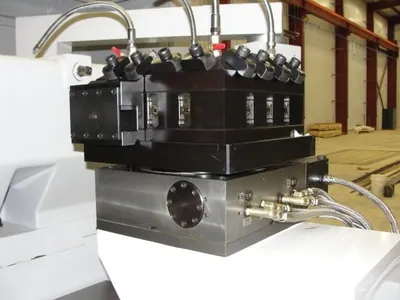

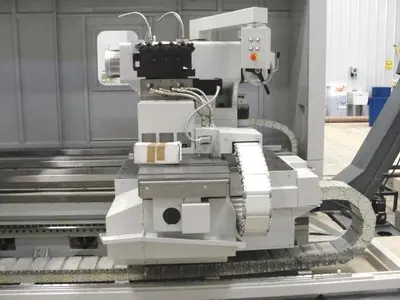

HP-350 Heavy Duty 4-Position Turret (VDI)
Auto Spindle Speed Changer
Traveling Front Single Door Interlocked with Carriage

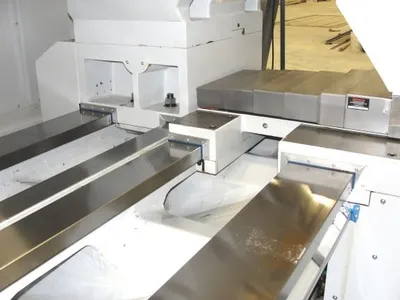

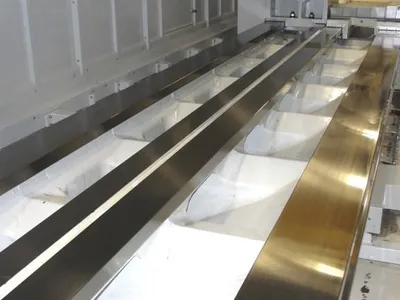

Turcite B on Carriage Way
Automatic Lubrication System

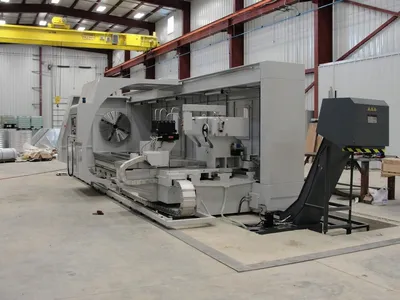

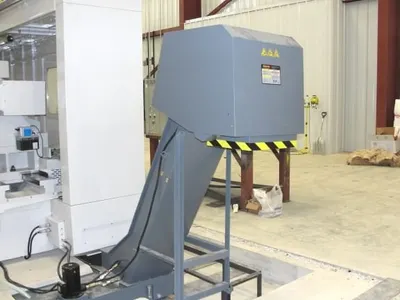

Chip Conveyor w/ Wash Down (157.48" Long)
Coolant System
(1) Roller Steady Rest (1.9"-15.74")
(1) Roller Steady Rest (19.96"-23.63")
Operation Manuals, Electric Schematics, Programming Manual

WARRANTY:
Full 1-Year Parts Warranty on Machine
Full 2-Year Parts Warranty on CNC Control

DELIVERY:
9-Months From Order

Features:
Brand New Machine, 9-Month Delivery
Fanuc 0i-TD CNC Control with Manual Guide
