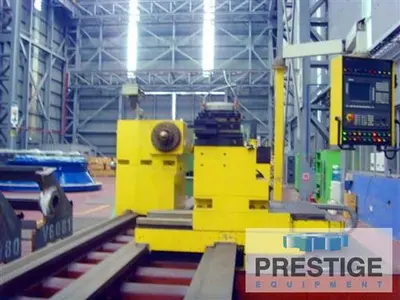

USED 1999 SAFOP T220

CAPACITY:
Maximum Swing: 86.61"
Maximum Swing Over Saddle: 66.92"
Distance Between Centers: 472.44"
Spindle Speeds (3-Ranges): 1.25 to 250 RPM
Weight Capacity Between Centers: 88,000 lbs
Tailstock Quill Diameter: 15.74"
Tailstock Quill Travel: 9.84"
Width of Bedways: 66.92"
Milling Attachment Y-Axis: 31.49"
Milling Attachment Taper: #50
Longitudinal Feeds: 0-157 IPM
Traversal Feeds: 0-78.74 IPM
Rapid Traverse: 157.48 IPM

Equipped With:

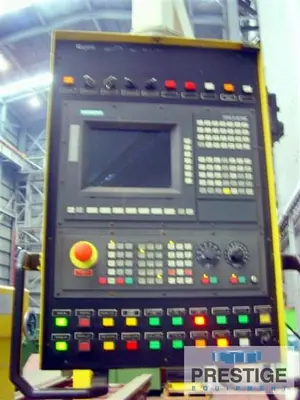

SIEMENS 840C CNC Control w/ 9.5" Color CRT
C-Axis with Spindle Brake
Milling Attachment

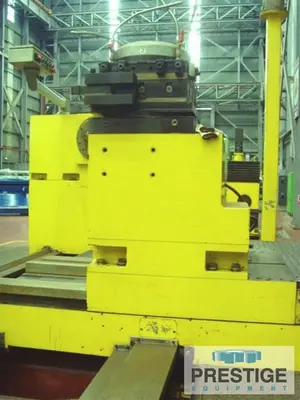

Sauter 4-Station Square Horizontal Turret

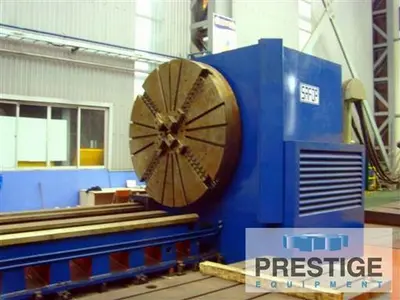

85" Diameter 4-Jaw Steel Body Chuck
Carriage Can Pass Steady Rests & Tailstock

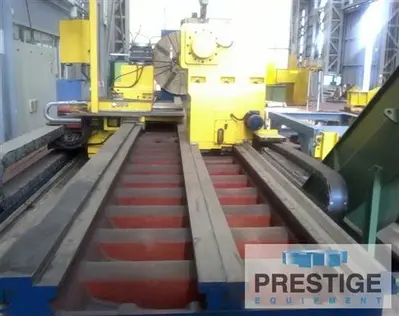

3-Way Heavy Duty Bed Construction
134 HP Spindle Motor

Features:
SIEMENS 840C CNC Control w/ 9.5" Color CRT
C-Axis with Spindle Brake
Milling Attachment
Sauter 4-Station Square Horizontal Turret
85" Diameter 4-Jaw Steel Body Chuck
Carriage Can Pass Steady Rests & Tailstock
3-Way Heavy Duty Bed Construction
134 HP Spindle Motor
