| Swing | 53.14" | 1,349.8 mm |
| Centers | 236.22" | 6,000 mm |
| Spindle Bore | 4.72" | 119.89 mm |
| Power | 54 hp | 40.3 kW |
| RPM | 500 RPM | 500 RPM |
| Swing Over Cross Slide | 41.33" | 1,049.8 mm |
CAPACITY:
Swing Over Bedway's: 53.14"
Swing Over Carriage: 41.33"
Distance Between Centers: 236.22"
Speeds (21 Ranges): 5-500 RPM
Spindle Bore: 4.72"
Spindle Nose: A1-15
Spindle Motor: 36 HP / 54 HP
Tailstock Diameter, No Live Center: 7.48"
Equipped With:
31.49" 4-Jaw Chuck
Tailstock with Quill
Automatic Lubrication System
Carriage with Two-Stage Transversal Travel
Bed & Carriage Guideway Hardened & Ground
(2) Steady Rest
New Chip Pans
NOTE:

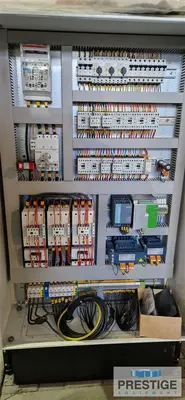

Overhauled in 2024, New electrical cabinet and all wires,
regrinding bed and carriage, new painting,
geometry acc. ISO 1708
Features:
31.49" 4-Jaw Chuck
Tailstock with Quill
Automatic Lubrication System
Carriage with Two-Stage Transversal Travel
Bed & Carriage Guideway Hardened & Ground
(2) Steady Rest
New Chip Pans
