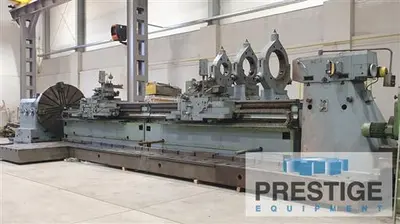

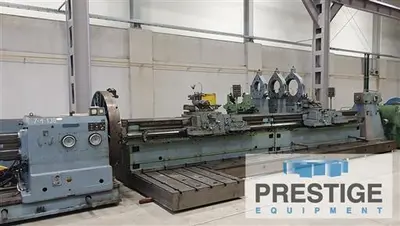

USED 1980 POREBA TZG 400B X 10M
Overview
Specifications
| Swing | 157.48" | 4,000 mm |
|---|---|---|
| Centers | 393.7" | 10,000 mm |
| Power | 100 hp | 74.6 kW |
| RPM | 100 RPM | 100 RPM |
| Swing Over Cross Slide | 98.42" | 2,499.9 mm |
CAPACITY:
Maximum Turning Dia.Over Floor Plate: 157.48"
Maximum Swing over Headstock Bedways: 98.42"
Face Plate Diameter: 78.74"
Turning Length: 314.96"
Distance Between Centers: 393.7"
Headstock Travel: 39.37"
Spindle Speeds (24).................... .8-100 RPM: .8-100 RPM
Weight Capcity Between Centers: 66,000 lbs
Weight Capacity With One Steady Rest: 77,000 lbs
Weight Capacity With Two Steady Rest: 88,000 lbs
Tailstock Quill Diameter: 11"
Quill Travel: 7.87"
Quill Travel: 7.87"
Equipped With:
78" Face Plate Type Chuck with 4-Chuck Jaws
(5) 78.74" x 275.59" T-Slotted Floor Plates
Carriage With 2-Portable Bed Sections
Hardened Steel Way Inserts
Inch/Metric Threading
Taper Cutting By Change Gears
Heavy Duty Tool Post
Tailstock
Tailstock Axial Force Indicator
(3)Roller Type Steady Rests
Grinding Attachment
Auto Lubrication
100 HP Main Motor (380/3/50)
NOTE:
Universal Facing & Turning Lathe Designed for machining large Diameter work
pieces. Especially useful for machining paper drums, boiler cylinders,
turbines.
Features:
Component Style
Displaceable Headstock
Displaceable Tailstock
30 Ton Weight Capacity
