| Swing | 96.85" | 2,460 mm |
| Centers | 242.7" | 6,164.6 mm |
| Power | 134 hp | 99.9 kW |
| RPM | 250 RPM | 250 RPM |
CAPACITY:
Maximum Swing: 96.85"
Maximum Turning Diameter: 96.85"
Distance Between Centers: 242.7"
Spindle Speeds (3-Ranges): .5-250 RPM
Spindle Torque: 81,300 NM
Weight Capacity Between Centers: 132,187 lbs.
Weight Capacity w/ Steady Rest: 176,250 lbs.
Carriage Travel, X-Axis: 236.22"
Carriage Travel, Z-Axis: 45.27"
Rapid Traverse, X-Axis: 472 IPM
Rapid Traverse, Z-Axis: 393 IPM
Main Motor: 134 HP
Machine Footprint (l x w): 511" x 157"
Machine Height: 122"
Equipped With:

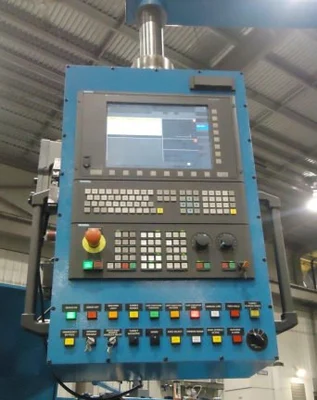

SIEMENS 840D CNC Control
Heidenhain Scales
Heidenhain Spindle Encoder for Threading Cycles

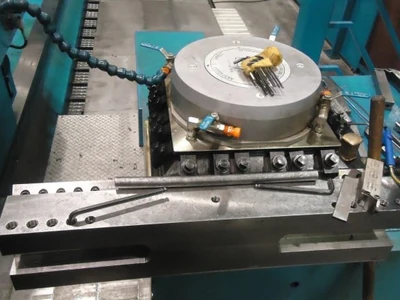

Sauter 4-Position Turret
Carriage Can Pass Steady Rests & Tailstock

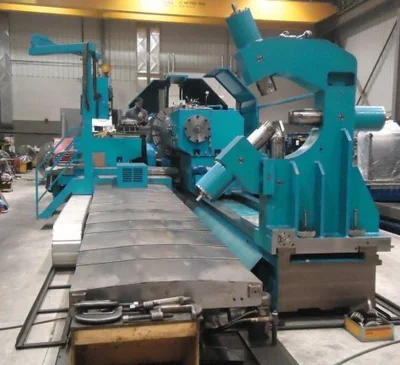

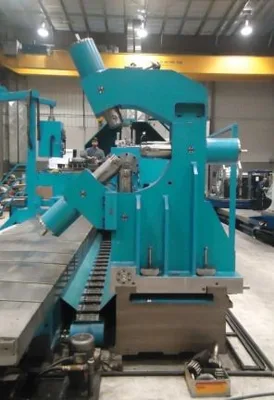

(1) C-Type Steady Rest
134 HP Spindle Motor
Note:
Inspect In Plant Under Power In Plant!
Features:
SIEMENS 840D CNC Control
Heidenhain Scales
Heidenhain Spindle Encoder for Threading Cycles
Sauter 4-Position Turret
Carriage Can Pass Steady Rests & Tailstock
(1) C-Type Steady Rest
134 HP Spindle Motor
