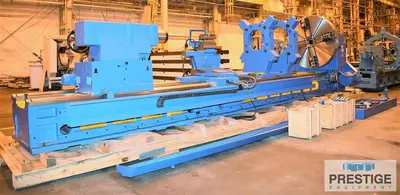

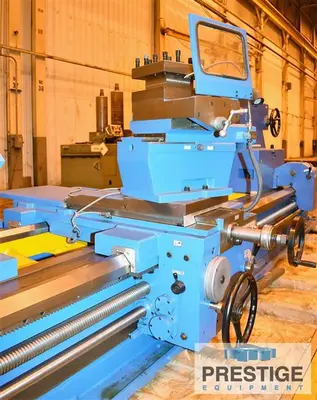

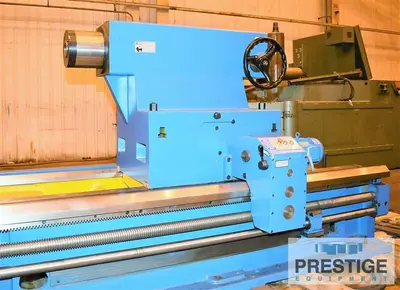

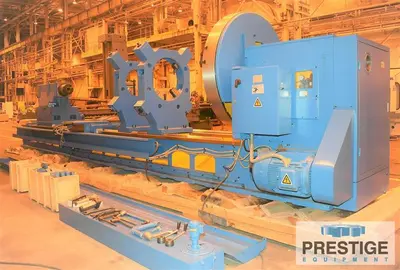

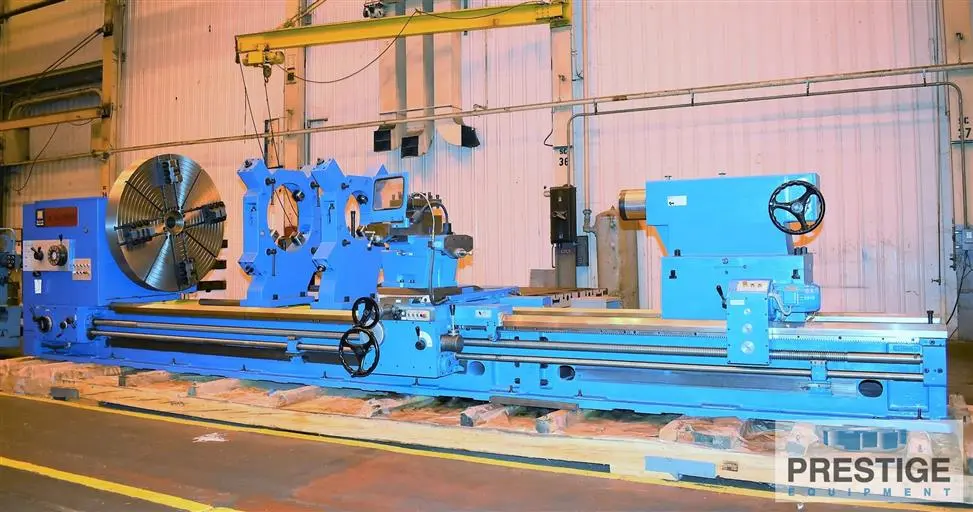

USED 2024 TRU TURN 1440/8M

CAPACITY:
Swing Over Bed: 56.69"
Swing Over Cross Slide: 41.33"
Width of Guide Way: 43.3"
Distance Between Centers: 314.96"
Spindle Speeds (21 Speeds): 3.15-315 RPM
Spindle Bore: 5.11"
Spindle Nose: 1:30
Tailstock Diameter: 11.02"
Tailstock Travel: 11.81"
Taper of Tailstock Bore: 1:7
Weight Capacity: 20,000 kg

Equipped With:

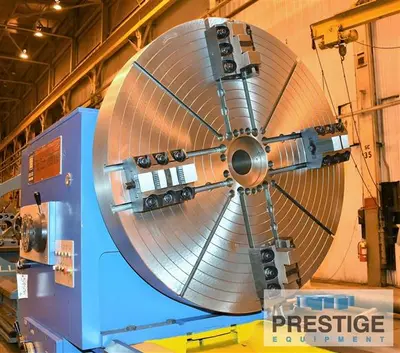

49.21" Diameter Face Plate with 4-Top Jaws
(1) Roller Type Steady Rest: 4.72" - 18.89"
(2) Roller Type Steady Rest: 15.74" - 27.55"
(1) Roller Support, Open Steady Rest: 19.68" -39.37"
Power Drive To Top Slide For Conical Cutting
Swivel Compound
Inch / Metric Threading
Thread Dial
Work Light
Built in 4-Way Tool Post
Pan Bed and Coolant System
Live Quill in Tailstock
Motorized Tailstock
Flame Hardened Bed Ways
40 HP Drive Motor With Controls
3/60/440 Volt Electrics
1-Year Parts Warranty

DELIVERY:
3-5 Months From of Confirmed Order

Features:
49.21" Diameter Face Plate with 4-Top Jaws
(1) Follow Rest
(3) Roller Type Steady Rest
(1) Roller Support, Open Steady Rest
Inch / Metric Threading
Thread Dial
