| Swing | 102.36" | 2,599.9 mm |
| Centers | 547.24" | 13,900 mm |
| Power | 134 hp | 99.9 kW |
| RPM | 250 RPM | 250 RPM |
| Swing Over Cross Slide | 74.8" | 1,899.9 mm |
Specifications:
Maximum Swing: 102.36"
Max Swing Over Carriage: 88.58"
Max Swing Over Cross Saddle: 74.80"
Distance Between Centers: 547.24"
Spindle Speeds, 3-Ranges: .8-250 RPM
Spindle Torque: 100,000 NM
Weight Capacity Between Centers: 176,250 lbs.
Weight Capacity w/ Steady Rest: 220,312 lbs.
Carriage Travel, X-Axis: 511.81"
Carriage Travel, Z-Axis: 47.24"
Rapid Traverse, X-Axis: 472 IPM
Rapid Traverse, Z-Axis: 393 IPM
Main Motor: 134 HP
Machine Floor Space: 767" x 216"
Machine Height: 118.11"
Equipped With:

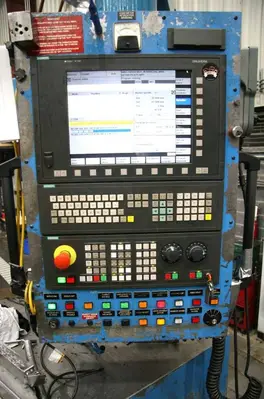

SIEMENS 840D CNC Control
Heidenhain Scales
Heidenhain Rotary Encoder for Threading Cycles

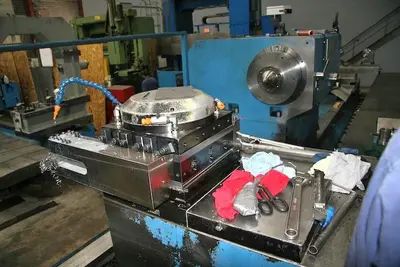

Sauter 4-Position Turret
Carriage Can Pass Steady Rests & Tailstock
134 HP Spindle Motor
Inspect In Plant Under Power In Plant!
