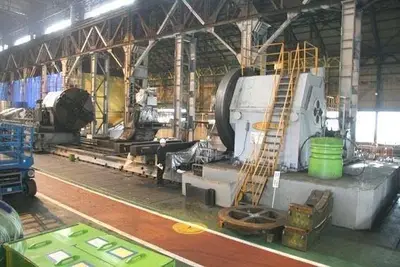

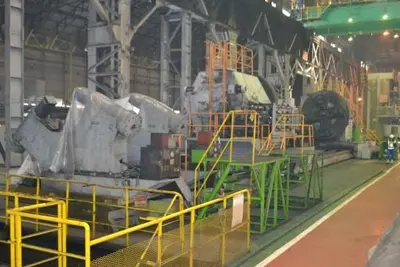

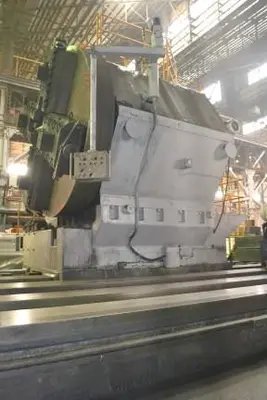

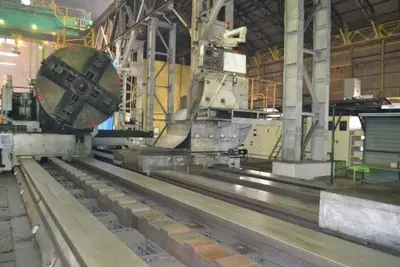

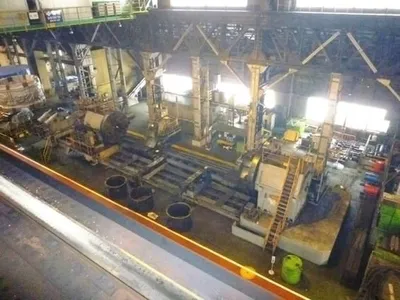

USED 2009 TOSHIBA LSC-40200A CNC

CAPACITY:
Maximum Swing Over Bedways: 196.85"
Maximum Turning Diameter Over Carr.: 157.48"
Distance Between Centers: 787.40"
Headstock Faceplate Diameter: 137.79"
Spindle Speeds: .4-40 RPM
Maximum Weight of Workpiece: 350 Ton
Torque on Faceplate: kg-m
Maximum Cutting Force: 20,000 kg
Carriage Cutting Feed, Longitudinal: .0112 to 4.72 IPM
Cross Feed of Carriage: .0059 to 2.36 IPM
Carriage Longitudinal Rapid Traverse: 78.74 IPM
Carriage Cross Rapid Traverse: 39.37 IPM

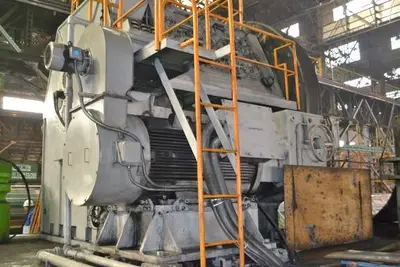

Main Drive Motor: 650 HP
Headstock Slideways: 2
Carriage Slideways: 3
Machine Dimensions W x L: 354" x 1181"
Machine Height: 216"
Approximate Machine Weight: 955,000 Lbs

Equipped With:

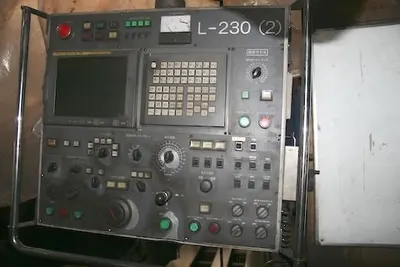

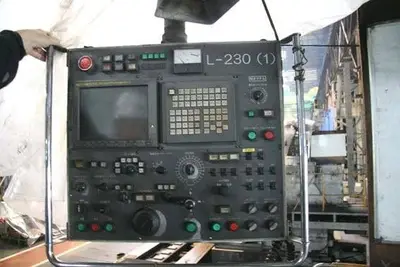

Fanuc 18i TB CNC Control (Retrofit In 2008)

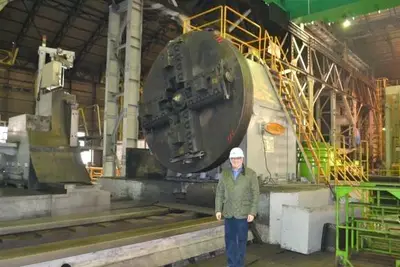

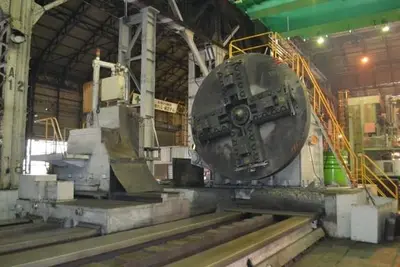

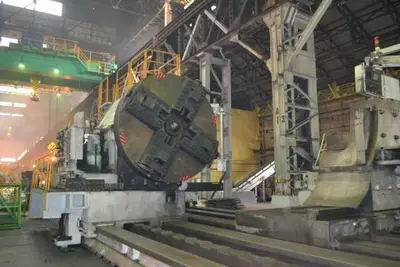

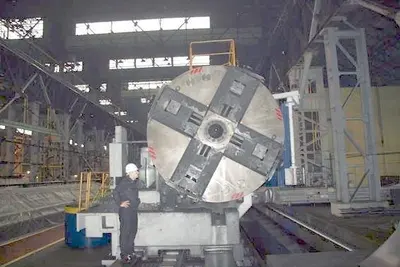

137.79" Diameter Headstock Face Plate

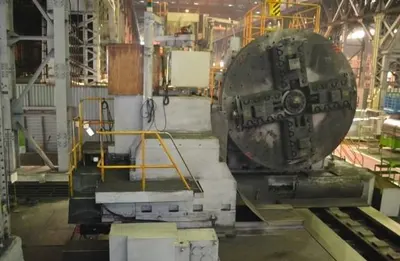

118.11" Diameter Sub-Spindle Face Plate On Tailstock

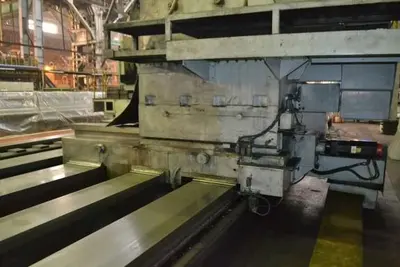

2-Carriages With Full Operators Controls
Hydrostatic Bearings On Headstock & Tailstock

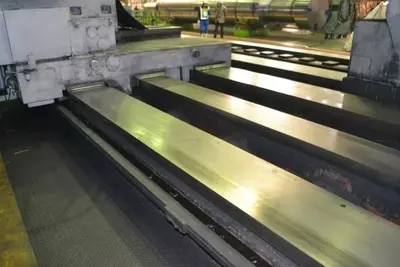

5-Way Bed 3+2 For Carriage Slide & Tailstock
Chip Conveyor
Coolant System
2-Heavy Duty Steady Rests, 200 Ton Capacity Each

NOTES:

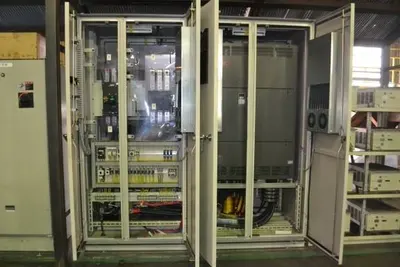

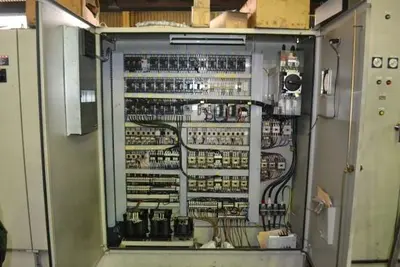

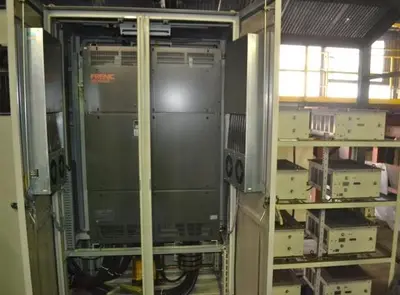

Complete CNC Retrofit in 2009 with All New Electrics
Hydrostatic Bearings In Main & Tailstock Spindles
Tailstock Equipped With Face Plate For Easy Centering
Inspect In Operation Turbine Shaft Machining Operation
Ocean Freight Not Included

Features:
Designed For Roughing and Finishing Massive Parts
2-Carriages with Operators Controls on Each
Fanuc 18i TB CNC Control New 2009
350 Ton Weight Capacity
Machine Can Be Operated From Either Carriage
