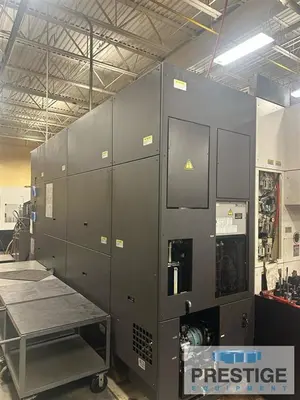

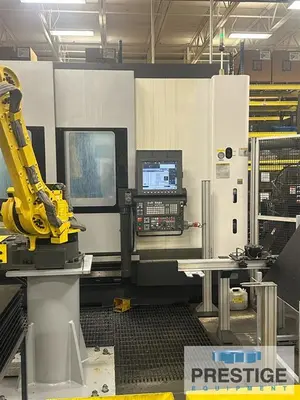

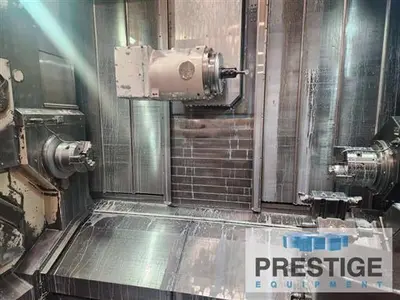

USED 2015 OKUMA MULTUS U3000 2SW/1500
Overview
Specifications
| Swing | 25.59" | 649.99 mm |
|---|---|---|
| Machining Length | 59.05" | 1,499.9 mm |
| # Axis | 3 | 3 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 3.15" | 80.01 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 5,000 RPM | 5,000 RPM |
| Turning Dia | 25.59" | 649.99 mm |
| Tailstock | '' | '' |
| Live Tooling | 'Yes' | 'Yes' |
| Sub Spindle | 'Yes' | 'Yes' |
CAPACITIES:
Maximum Turning Diameter: 25.59"
Maximum Distance Between Centers: 59.05"
Main Spindle Speed Range: 5,000 RPM
Milling Speeds: 12,000 RPM
Spindle Nose: A2-6
X-Axis Travel: 25.39"
Y-Axis Travel: 9.84"
Z-Axis Travel: 62.99"
C-Axis Indexing: 0.001 Degree
B-Axis Indexing: -30 to +210/.001 Min Angle
Spindle Bore: 3.15"
Main Motor: 30 HP/ 20HP
Rapid Traverse (X-Axis): 1,968 IPM
Rapid Traverse (Y-Axis): 1,574 IPM
Rapid Traverse (Z-Axis): 1,968 IPM
Approximate Dimensions: 194" x 117" x 118"
Approximate Weight: 35,640 Lbs.
Equipped With:

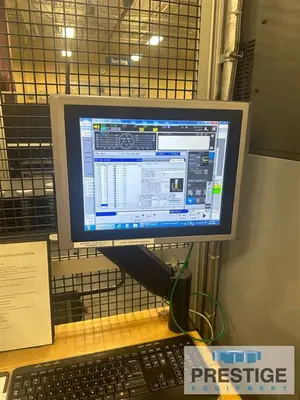

OSP-P300 CNC Control

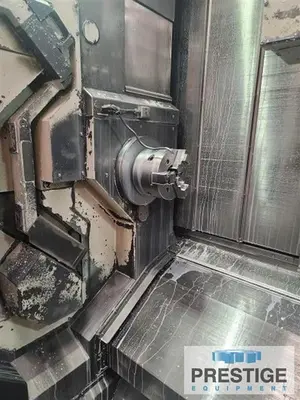

8" 3-Jaw Chuck (Main)
8" 3-Jaw Chuck (Sub)
120-Station Tool Changer (CaptoC6)
Auto Door with Dual Start
Renishaw RMP600
Touchsetter A for 2S
Barfeeder I/F Universal Type
Y-Axis Gauging
Chuck Hi/Lo Pressure
Thru Sub Spindle Coolant
Absolute Scale XA
Turret Air Blow for Both L&M
Part Probe Calibration on Lower Turret
Chip Conveyor
MP Systems High Pressure Coolant (1000 PSI)
MP Systems Mist Collection System
MP BTU Coolant Chiller
Chip Conveyor
NOTE:
Inspect In Plant Under Power
Features:
OSP-P300 CNC Control
8" 3-Jaw Chuck (Main)
8" 3-Jaw (Sub)

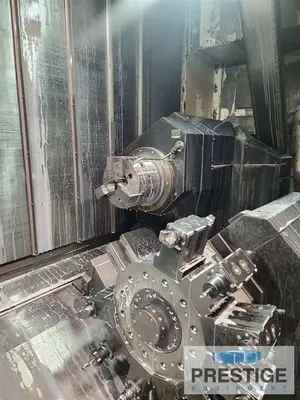

120-Station Tool Changer (CaptoC6)
Live Milling
C-Axis Indexing
Sub Spindle
