| Swing | 64.96" | 1,650 mm |
| Centers | 137.79" | 3,499.9 mm |
| Power | 50 hp | 37.3 kW |
| RPM | 200 RPM | 200 RPM |
| Swing Over Cross Slide | 33.46" | 849.88 mm |
SPECIFICATIONS:
Swing Over Bed: 64.96"
Swing Over Saddle: 33.46"
Maximum Turning Between Centers: 137.79"
Maximum Weight Between Centers: 6,600 Lbs.
Spindle Speeds: 200 RPM
Maximum X-Axis Speed: 118.11 IPM
Maximum Z-Axis Speed: 236.22 IPM
Approximate Floor Space: 287" x 166"
Approximate Weight of Machine: 33,070 Lbs.
Equipped With:

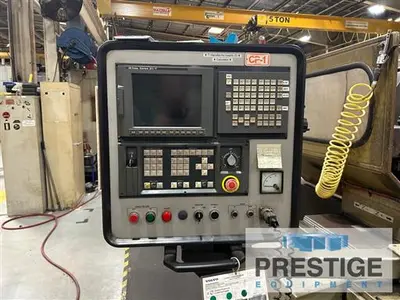

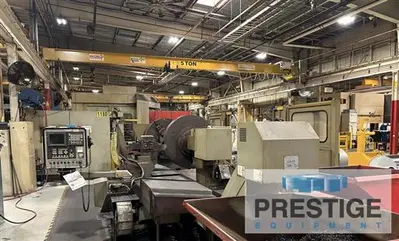

Fanuc 21iT CNC Control

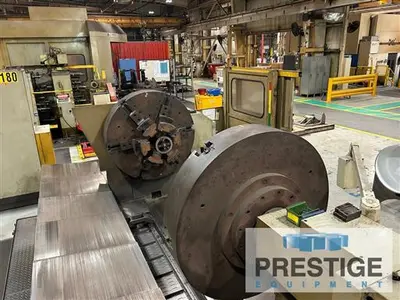

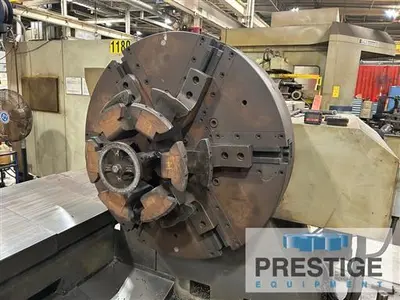

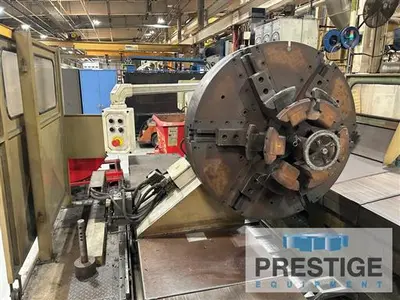

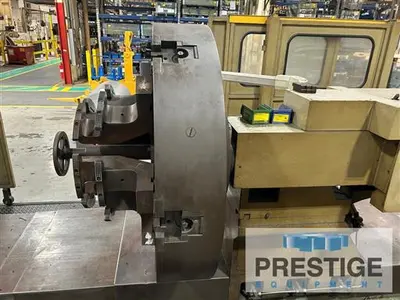

48" 6-Jaw Self Centering Chuck

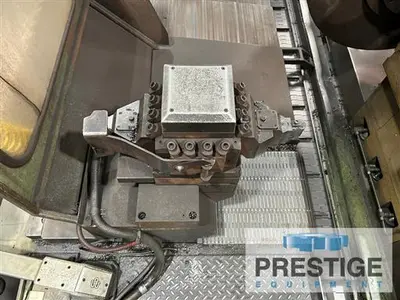

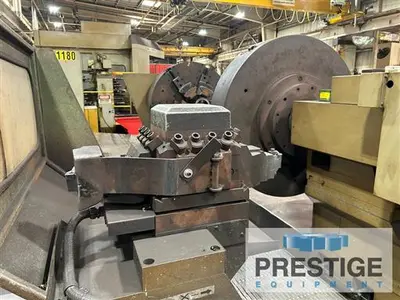

4-Position Sauter Turret
Chip Conveyor

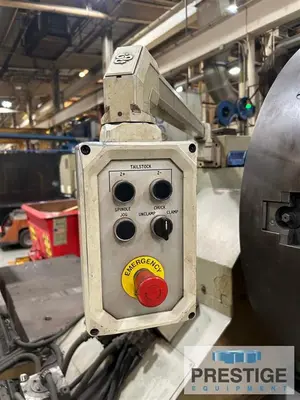

Hydraulic Tailstock
50 HP Main Motor (460/3/60)
NOTE:
Inspect In Plant Under Power
Features:
Fanuc 21iT CNC Control
48" 6-Jaw Self Centering Chuck
4-Position Sauter Turret
Chip Conveyor
Hydraulic Tailstock
50 HP Main Motor (460/3/60)
