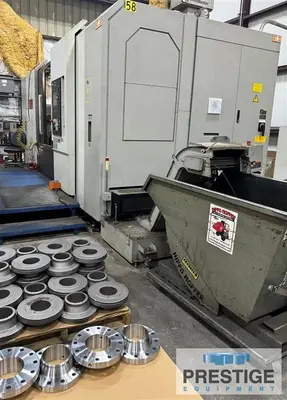

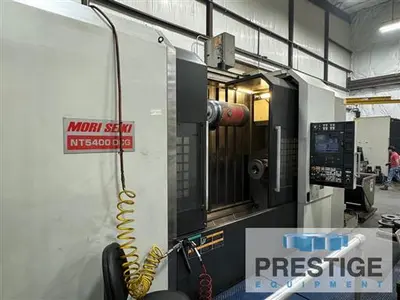

USED 2007 MORI SEIKI NT5400/1800SZ
Overview
Specifications
| Swing | 36.2" | 919.48 mm |
|---|---|---|
| Machining Length | 75.6" | 1,920.2 mm |
| # Axis | 4 | 4 |
| Chuck Size | 18" | 457.2 mm |
| Bar Capacity | 4.7" | 119.38 mm |
| Power | 50 hp | 37.3 kW |
| Max RPM | 2,400 RPM | 2,400 RPM |
| Live Tooling | Yes | Yes |
| Sub Spindle | Yes | Yes |
SPECIFICATIONS:
Maximum Workpiece Swing: 36.2"
Maximum Swing Over Cross Slide: 36.2"
Maximum Machining Length: 75.6"
Main Spindle Speed: 2400 RPM
Main Spindle Bore: 4.7"
Main Spindle Nose: A2-11
Main Motor: 50 HP/40 HP
Sub-Spindle Speed: 2400 RPM
Sub-Spindle Bore: 4.7"
Sub-Spindle Motor: 50 HP/40 HP
X-Axis Travel: 40.9"
Y-Axis Travel: +/-10"
Z-Axis Travel: 76.4"
Main Milling Spindle: 8,000 RPM
Main Milling Spindle Motor: 40 HP/30 HP
Spindle Taper: C8
C-Axis Indexing Main Spindle: .001 Deg.
C-Axis Indexing Sub-Spindle: .001 Deg.
B-Axis: 230 Deg.
Approximate Machine Weight: 74,800 Lbs.
Equipped With:

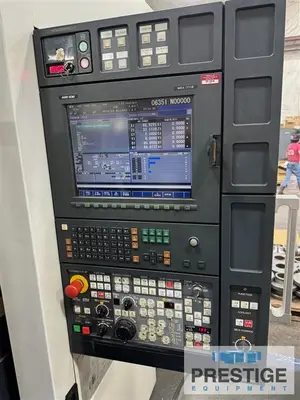

MORI MSX-711 III CNC Control

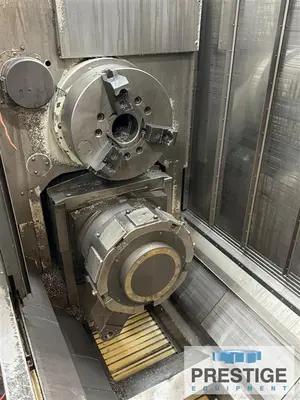

18" 3-Jaw Chuck on Main Spindle

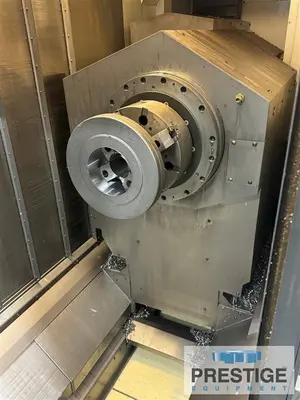

15.74" 4-Jaw on Sub Spindle
10-Station Lower Turret with Milling
High Pressure Thru Spindle Coolant
B-Axis Milling Spindle
80-Position Automatic Tool Changer
Chip Conveyor
NOTE:
Inspect In Plant Under Power
Features:
MORI MSX-711 III CNC Control
18" 3-Jaw Chuck on Main Spindle
15.74" 4-Jaw on Sub Spindle
10-Station Lower Turret with Milling
High Pressure Thru Spindle Coolant
B-Axis Milling Spindle
80-Position Automatic Tool Changer
Chip Conveyor
