| Swing | 22" | 558.8 mm |
| Machining Length | 78" | 1,981.2 mm |
| # Axis | 2 | 2 |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3" | 76.2 mm |
| Power | 10.6 hp | 7.9 kW |
| Max RPM | 2,200 RPM | 2,200 RPM |
| Turning Dia | 13" | 330.2 mm |
| Tailstock | 'Yes' | 'Yes' |
| Live Tooling | '' | '' |
| Sub Spindle | '' | '' |
SPECIFICATIONS:
Swing Over Bed: 22"
Swing Over Cross Slide: 13"
Maximum Workpiece Length: 78"
Spindle Bore: 3"
Spindle Nose: D8 (A8-11 Mount)
Spindle Speed Range: 2200 RPM
Spindle Drive Motor: 10.6 HP
X Axis Travel: 12"
Z-Axis Travel: 76"
Tailstock Taper: #5 MT
Approximate Machine Weight: 6,500 Lbs.
Equipped With:

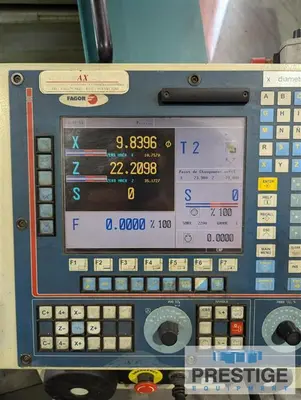

FAGOR CNC Control
CNC Mode and Teach Mode, with Manual Jog

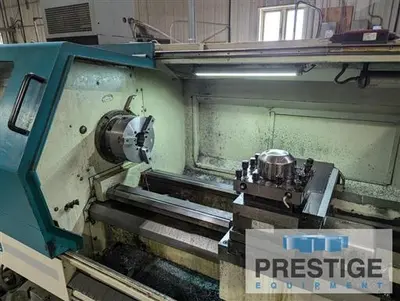

10" 3-Jaw Hydraulic Chuck

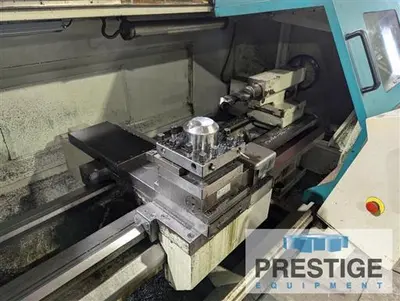

Tool Post
Coolant System
Automatic Lubrication

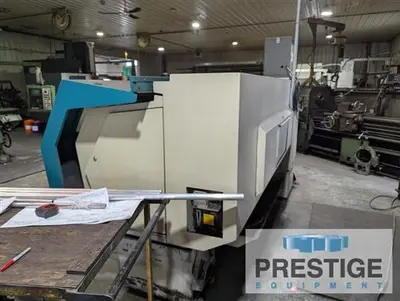

Full Splash Enclosures
Tailstock
Features:
FAGOR CNC Control
CNC Mode and Teach Mode, with Manual Jog
10" 3-Jaw Hydraulic Chuck
Tool Post
Coolant System
Automatic Lubrication
Full Splash Enclosures
Tailstock
