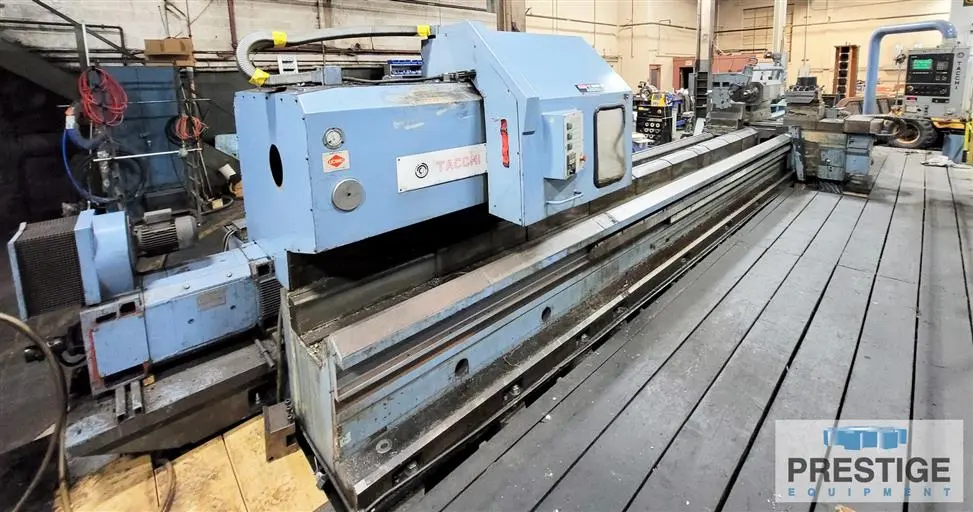

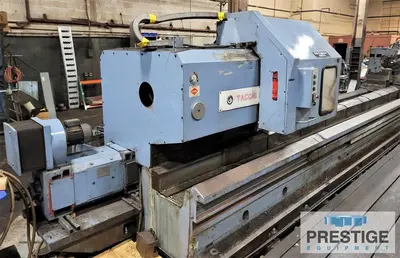

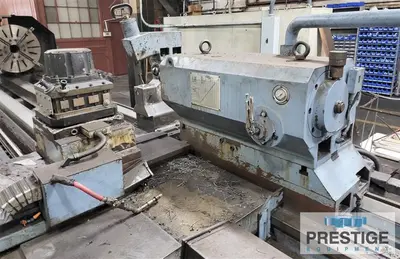

USED TACCHI HD/3 105L X 7000
Overview
Specifications
| Swing | 45.27" | 1,149.9 mm |
|---|---|---|
| Centers | 275.59" | 7,000 mm |
| Spindle Bore | 4.13" | 104.9 mm |
| Power | 80 hp | 59.7 kW |
| RPM | 720 RPM | 720 RPM |
| Swing Over Cross Slide | 31.49" | 799.85 mm |
Serial Number: 6640
CAPACITY:
Maximum Swing Over Bed: 45.27"
Maximum Swing Over Saddle: 31.49"
Distance Between Centers: 275.59"
Spindle Speeds: 2-720 RPM
Number of Speed Ranges: 3
Main Motor: 80 HP (60 KW)
Maximum Torque: 900 Kgm
Spindle Nose DIN 55021: 11"
Spindle Hole Diameter: 4.13"
Longitudinal Feeds, Variable: 0-236 IPM
Cross Feeds, Variable: 0-236 IPM

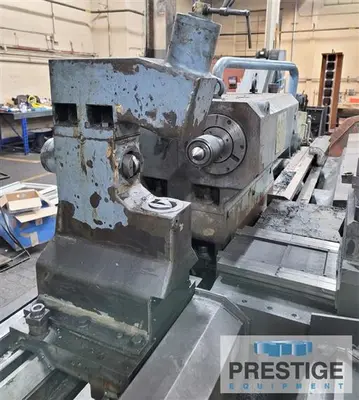

Tailstock Quill Diameter: 5.51"
Tailstock Quill Travel: 11.81"
Internal Taper: Morse #6
Machine Footprint: 511" x 120"
Machine Height: 83"
Equipped With:

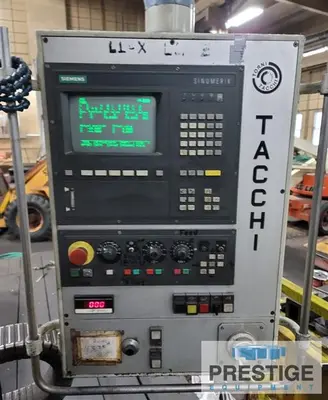

SIEMENS 810 CNC Control

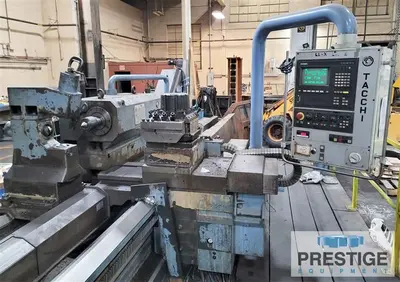

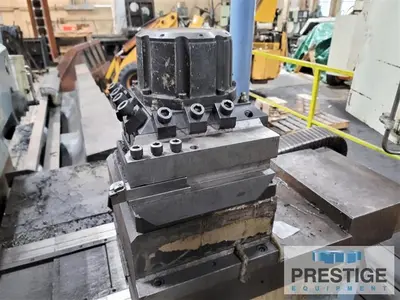

Duplomatic TRM-N 4-Position Turret

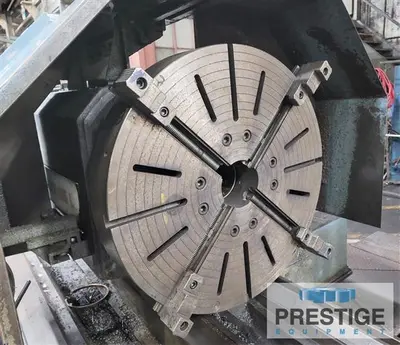

36" 4-Jaw Chuck

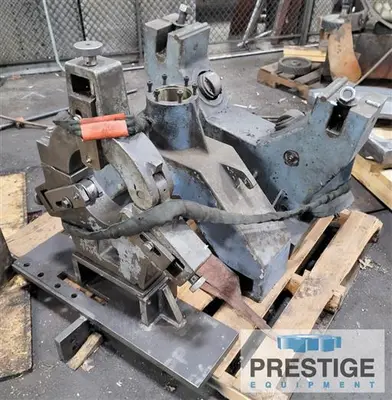

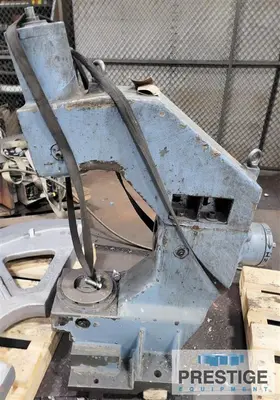

(3) Steady Rest
Chip Conveyor
NOTE:
3-Way Bed, Carriage Can Pass Tailstock & Steady Rest
Features:
3-Way Bed, Carriage Can Pass Tailstock & Steady Rests
SIEMENS 810 CNC Control
Duplomatic TRM-N 4-Position Turret
36" 4-Jaw Chuck
(3) Steady Rests
Chip Conveyor
