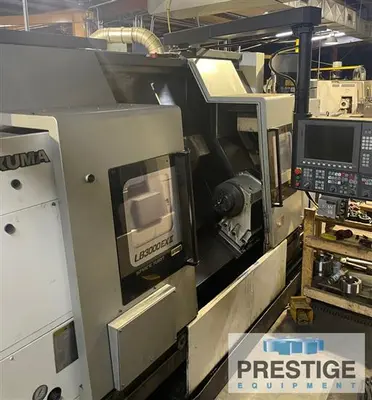

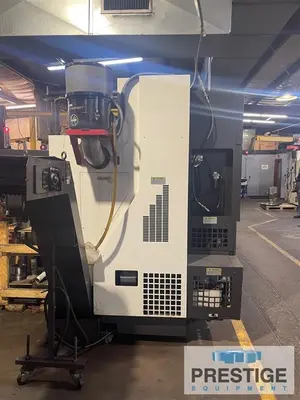

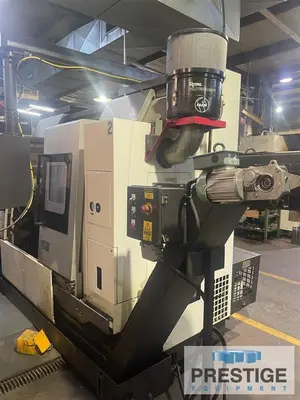

USED 2016 OKUMA LB-3000EX-II-MYW 800
Overview
Specifications
| Swing | 22.83" | 579.88 mm |
|---|---|---|
| Machining Length | 31.5" | 800.1 mm |
| # Axis | 4 | 4 |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3.59" | 91.186 mm |
| Power | 40 hp | 29.8 kW |
| Max RPM | 4,200 RPM | 4,200 RPM |
| Turning Dia | 13.39" | 340.11 mm |
| Live Tooling | Yes | Yes |
| Sub Spindle | Yes | Yes |
SPECIFICATIONS:
Swing Over Bed: 22.83"
Swing Over Cross Slide................. 18.5": 18.5"
Maximum Cutting Diameter: 13.39"
Maximum Cutting Length: 31.5"
Distance Between Spindles: 42.72"
X-Axis Travel: 10.24"
Z-Axis Travel: 39.76"
Spindle Bore: 3.59"
Spindle Nose: A2-8
Main Spindle Speed: 4,200 RPM
Main Spindle Motor: 40 HP
Sub Spindle Motor: 15 HP
Sub Spindle Speed: 6000 RPM
Milling Spindle Speed: 6000 RPM
Milling Spindle Motor: 15 HP
Equipped With:

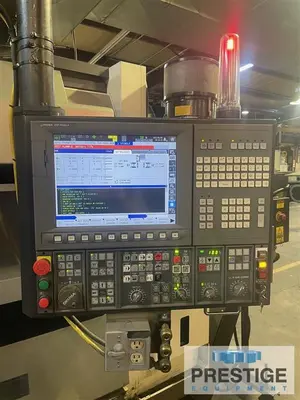

Okuma OSP-P300LA CNC Control
Main Spindle With 10" 3-Jaw Chuck

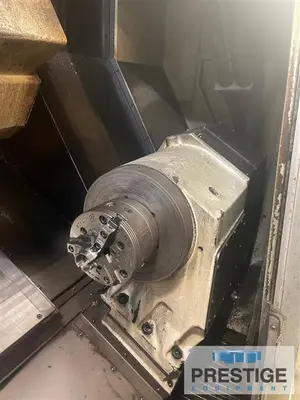

Sub Spindle With 6" 3-Jaw Chuck
Big Bore Option

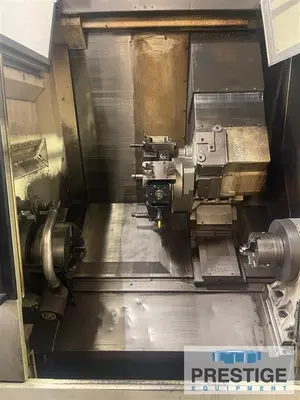

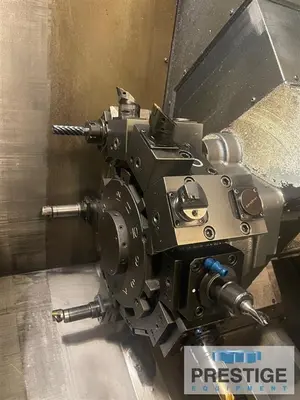

12-Station Turret With Live Milling
Y-Axis & C-Axis
High Pressure Coolant
Helical Cutting for MY
Cariable Spindle Speed Threading
Negative Tool Radius Comp
Inverse Time Function
Rapid Traverse Override Switch
Off-Center Turning Function
HOUR COUNT:
OPERATING HOURS: 6,791
CUTTING HOURS: 5,755
NOTE:
Inspect in Plant Under Power
Features:
Okuma OSP-P300LA CNC Control
Big Bore Option
Main & Sub Spindle
12-Station Turret
Live Milling
Y-Axis & C-Axis
High Pressure Coolant
