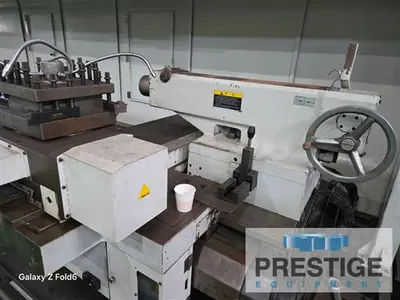

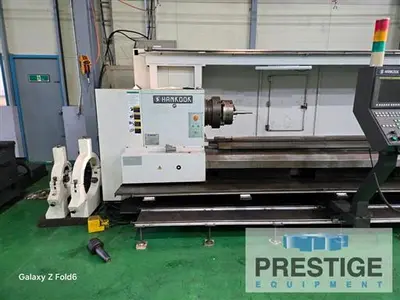

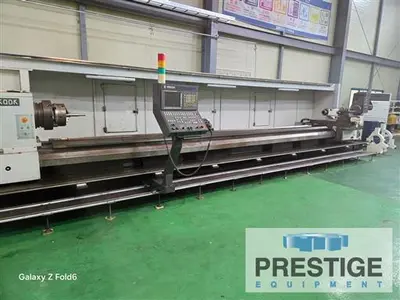

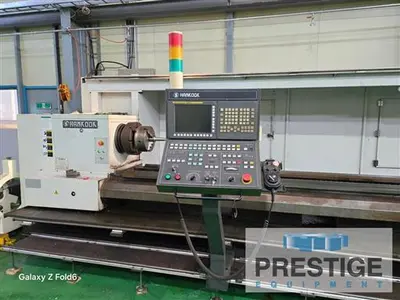

USED 2012 HANKOOK HANTURN 75 X 6M
Overview
Specifications
| Swing | 29.52" | 749.81 mm |
|---|---|---|
| Machining Length | 236.22" | 6,000 mm |
| # Axis | 2 | 2 |
| Chuck Size | 17.71" | 449.83 mm |
| Bar Capacity | 4.13" | 104.9 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 1,250 RPM | 1,250 RPM |
| Turning Dia | 29.52" | 749.81 mm |
| Tailstock | Yes | Yes |
CAPACITIES:
Swing Over Bed: 29.52"
Swing Over Carriage: 18.89"
Max. Turning Diameter: 29.52"
Distance Between Centers: 236.22"
Loading Capacity Between Centers: 8,800 Lbs.
Maximum Spindle Speed: 1-1,250 RPM
Spindle Nose: A2-11
Spindle Bore: 4.13"
Spindle Drive Motor: 20 HP/24 HP
X-Axis Travel: 16.73"
Z-Axis Travel: 251.18"
Tailstock Quill Diameter: 4.40"
Tailstock Spindle Taper: MT-6
Tailstock Quill Travel: 7.87"
Approximate Machine Weight: 28,600 Lbs.
Equipped With:

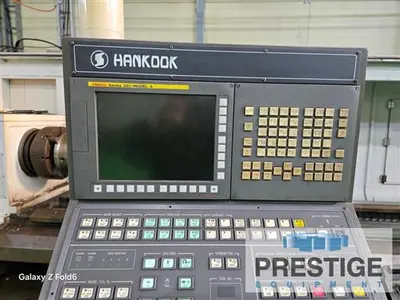

Fanuc 32i-TA CNC Control
Automatic Square Tool Post
17.71" Hydraulic Chuck
15.74" Manual Chuck

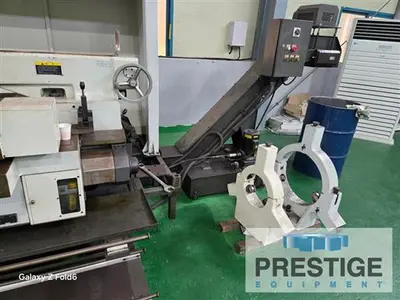

(2) Steady Rest (9.84" & 15.7")
Tailstock
Chip Conveyor
Features:
Fanuc 32i-TA CNC Control
Automatic Square Tool Post
17.71" Hydraulic Chuck
15.74" Manual Chuck
(2) Steady Rest (9.84" & 15.7")
Tailstock
Chip Conveyor
