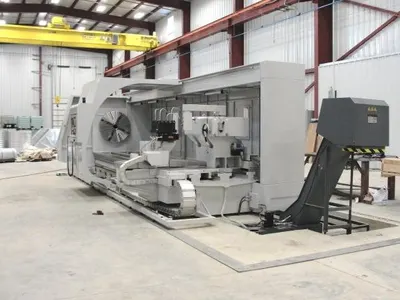

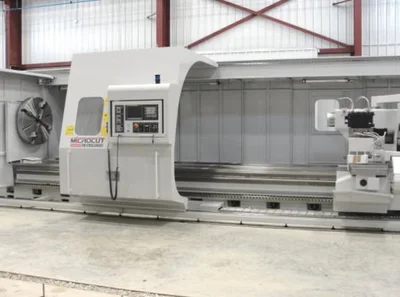

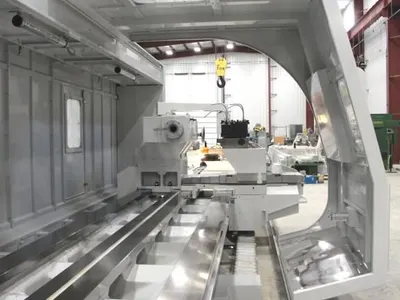

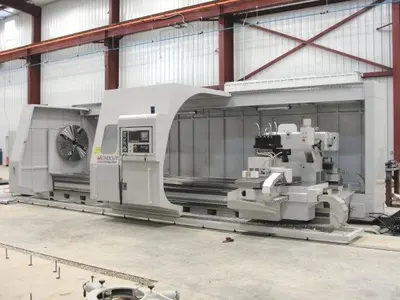

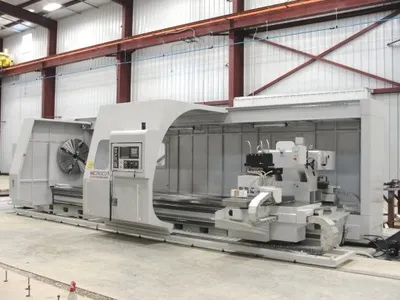

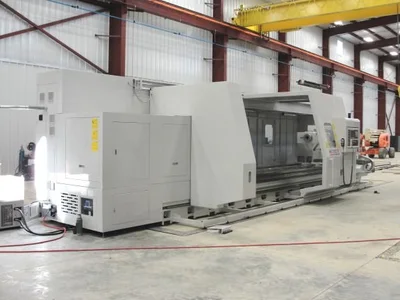

USED 2025 MICROCUT BNC 6500 X 8M

CAPACITY:
Swing Over Bed: 62.99"
Swing Over Cross Slide: 50.39"
Overall Bed Width: 51.18"
Maximum Turning Length: 314.96"
Weight Between Centers (Unsupported): 22,000 Lbs.
Weight Between Centers (2 Steady Rest). 33,048 Lbs.:
X-Axis Travel: 31.49"
Z-Axis Travel: 314.96"
Spindle Speeds, 2-Ranges (Variable): 1-735 RPM
Spindle Bore: 6.02"
Spindle Nose Mount: A2-11
Spindle Drive Motor (220 Volt): 80 HP / 100 HP
Quill Diameter: 9.44"
Quill Stroke: 9.05"
Quill Taper: #6 MT
Rapid Traverse (X/Z): 393.70 IPM
Approximate Dimensions: 490.94" x 133.38" x 105.51"
Approximate Weight: 72,600 Lbs.

Equipped With:

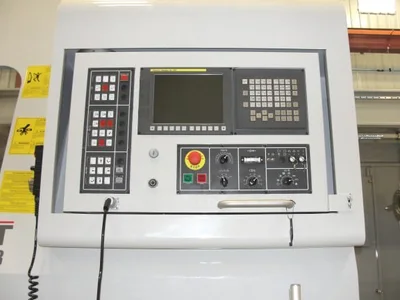

Fanuc 0iTF CNC Control with 10.4" LCD & Manual Guide i
Chuck Sliding Guard with Interlock Device

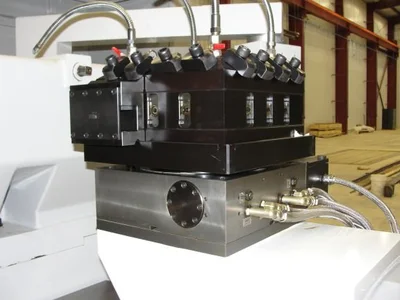

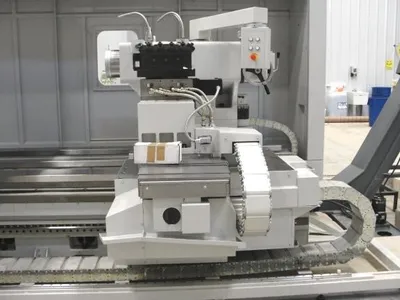

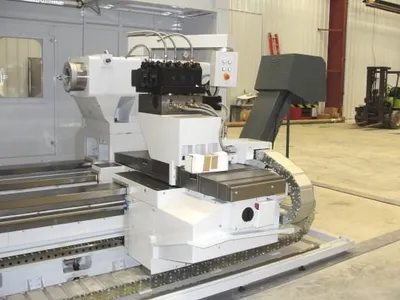

HP-350 Heavy Duty 4-Position Turret (VDI)
Auto Spindle Speed Changer

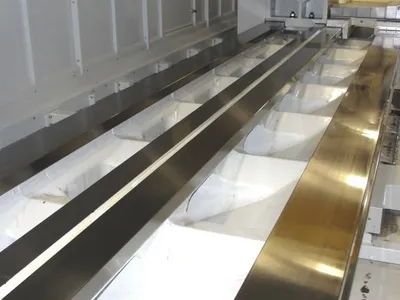

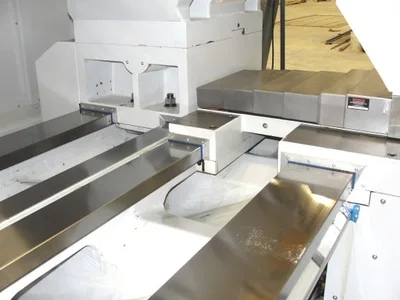

Four Wide Guide Ways in One Piece
Travelling Front Single Door Interlocked with Carriage

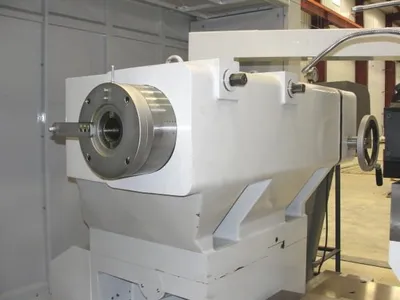

Motorized Tailstock
Linear Scale For Z Axis

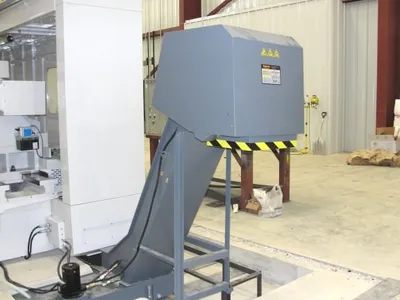

Chip Conveyor w/ Wash Down (314.96" Long)
Coolant System
Central Lubrication System
CE-Regulated of Conformity for EU Countries
(1) Roller Steady Rest (1.9"-15.7")
(1) Roller Steady Rest (14.9"-23.6")
(1) Roller Steady Rest (22.83"-31.5")
Operation Manuals, Electric Schematics, Programming Manual

NOTE:
Full 1-Year Parts Warranty on Machine
Full 2-Year Parts Warranty on CNC Control
Delivery From Factory: 6-Months From Order

Features:
Brand New Built To Order
Fanuc 0iTF CNC Control with Manual Guide i
