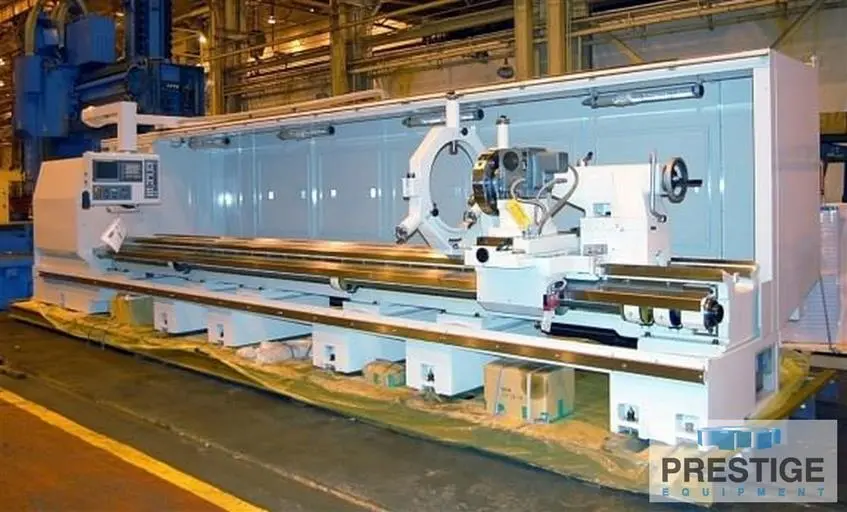

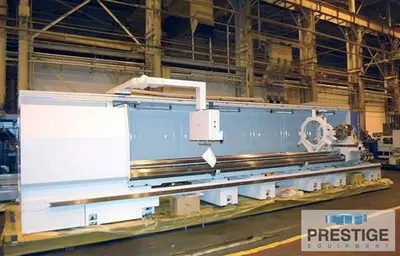

USED 2025 MICROCUT BNC 4000 X 6M

CAPACITY:
Swing Over Bed: 40.15"
Swing Over Cross Slide: 26.77"
Swing in Gap: 50.39"
Width of Bed: 22.5"
Maximum Turning Length: 236.22"
Max. Work Piece Weight w/ Tailstock: 6,600 Lbs
Max. Work Piece Weight - 1-Steady: 8,800 Lbs
Max. Work Piece Weight - 2-Steadies: 11,000 Lbs
Spindle Speeds, 2-Ranges: 15-1480 RPM
Spindle Hole Diameter: 4.17"
Spindle Nose Mount: A1-11
Quill Diameter: 4.92"
Quill Stroke: 9.055"
Quill Taper: #6 MT
Overall Dimensions: 351" x 123" x 92"
Machine Weight: 33,000 Lbs.

Equipped With:

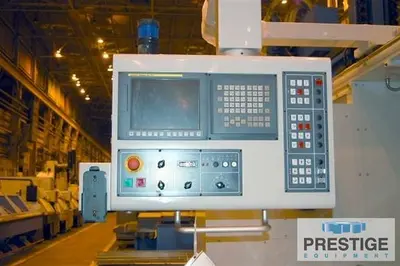

Fanuc 0iTF CNC Control with 10.4" LCD and Manual Guide i
RS 232 Communication Port
Fanuc Package Servo Motors
Thread Repair Function
Baruffaldi TB-200 VDI50/8T 8 Pos. Front Mounted Turret

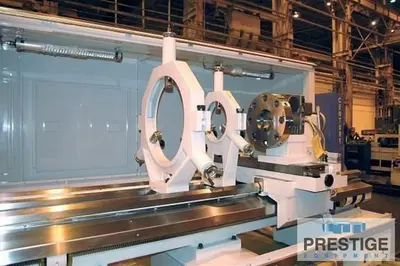

1.96" to 11.81" Capacity Roller Steady Rest
9.84" to 23.62" Capacity Roller Steady Rest
2-Step Variable Speed with Auto Spindle Step Change
Gap Bed
Automatic Lubrication System
Halogen Work Light

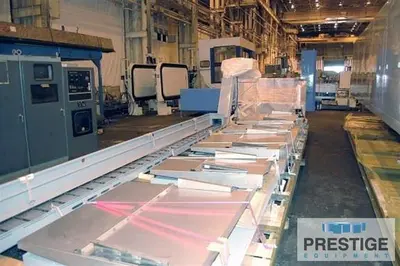

Full Length Chip Conveyor

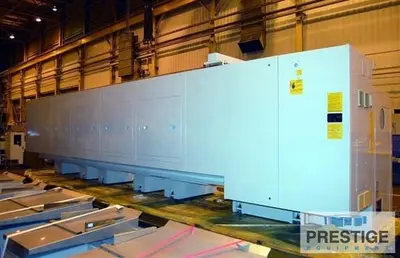

Travelling Front Door

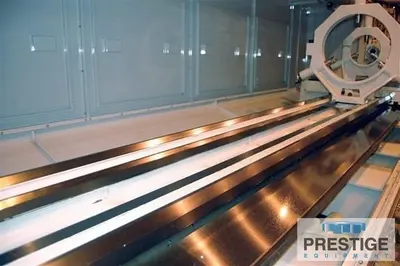

Hardened Ways
Leveling Pads and Bolts
29 HP/44 HP Spindle Drive Motor 220/3/60 Cycle
Full 1-Year Parts Warranty on Machine
Full 2-Year Parts Warranty on CNC Control

NOTE:
Delivery Time Approximately 8 months from order

Features:
Fanuc 0iTF CNC Control with 10.4" LCD and Manual Guide i
Baruffaldi TB-200 VDI50/8T 8 Pos. Front Mounted Turret
1.96" to 11.81" Capacity Roller Steady Rest
9.84" to 23.62" Capacity Roller Steady Rest
Full Length Chip Conveyor
